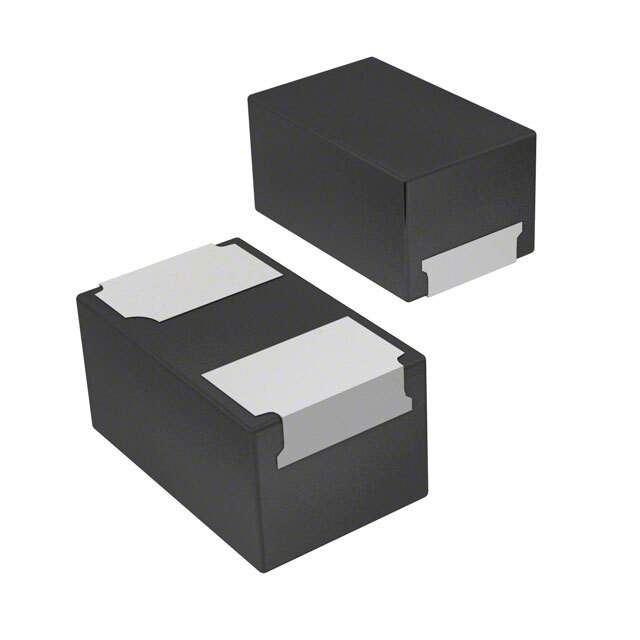

The SBR0240LPW-7B is a cutting-edge power rectifier component manufactured by Diodes Incorporated, a leading company in the semiconductor market. This product is part of the Super Barrier Rectifier (SBR®) series, which are known for their high performance and reliability in various electronic applications.

Key Features

• Low Power Loss, High Efficiency: The SBR0240LPW-7B is designed to minimize power loss, which makes it highly efficient for use in power-sensitive circuits.
• Super Barrier Design: The unique super barrier structure provides a lower forward voltage drop compared to conventional PN junction rectifiers.
• High Surge Capability: This product can withstand high surge currents, making it suitable for applications that experience occasional surges.
• Low Thermal Resistance: With its low thermal resistance, the SBR0240LPW-7B can operate effectively at higher temperatures without performance degradation.
• Lead-Free Finish: The component is finished with a lead-free plating, which makes it RoHS compliant and environmentally friendly.
• PowerDI® 123 Package: The small and flat PowerDI® 123 package allows for compact designs and efficient thermal performance.

Applications

The SBR0240LPW-7B is versatile and can be used in a wide range of applications. It is particularly well-suited for:

• DC/DC converters
• Power supply units
• LED lighting
• Battery charging circuits
• Automotive applications
• Reverse polarity protection circuits

Technical Specifications

With a maximum average rectified current of 2.0 A and a reverse voltage of 40 V, the SBR0240LPW-7B provides a robust solution for high-efficiency power rectification. The operating junction temperature range of -55°C to +150°C ensures stability across various environmental conditions.

Quality and Reliability

Diodes Incorporated is committed to delivering high-quality components. The SBR0240LPW-7B is subjected to rigorous testing and quality control measures to ensure it meets the stringent requirements of the industry. Customers can rely on this product for consistent performance and durability.
