The SBR10150CTE is a state-of-the-art Schottky Barrier Rectifier designed and manufactured by Diodes Incorporated, a leading company in the semiconductor market. This high-performance component is engineered to provide efficient, low-loss power management solutions for a wide array of electronic applications.

Key Features

• High Current Capacity: With a forward continuous current rating of 10A, the SBR10150CTE is capable of handling high current demands, making it suitable for power-intensive applications.
• Low Forward Voltage Drop: The device offers a low forward voltage drop, typically just 0.85V, which enhances power efficiency by minimizing power loss during operation.
• Super Barrier Rectifier Technology: Utilizing Diodes Incorporated's proprietary Super Barrier Rectifier (SBR) technology, the SBR10150CTE offers superior performance compared to traditional Schottky diodes, including better thermal performance and a higher surge current capability.
• Dual Rectifier Configuration: The device features a common cathode dual rectifier configuration, which simplifies the design and reduces component count in applications requiring two diodes.
• High Surge Capability: The SBR10150CTE is designed to withstand high surge currents, ensuring reliability and robustness during transient conditions.
• Temperature Range: It operates over a wide temperature range from -55°C to 150°C, accommodating various environmental conditions and ensuring stability across different operating temperatures.

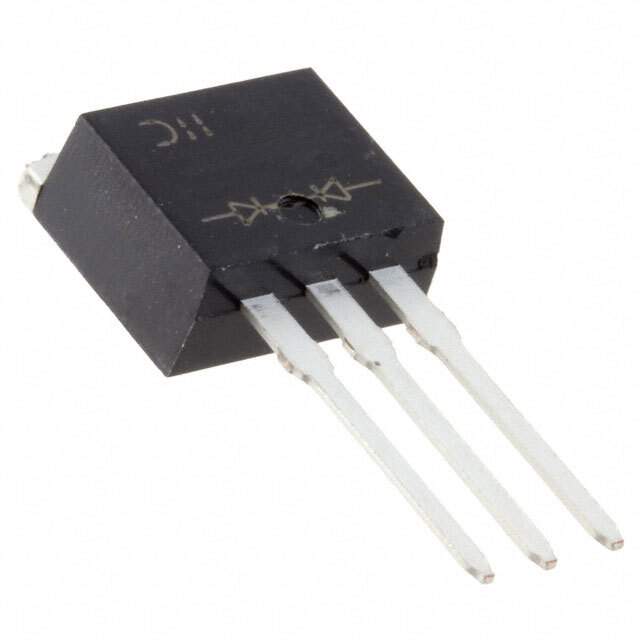

• Package: The component comes in a TO-220AB package, which is widely used and recognized for its ease of installation and excellent thermal and electrical characteristics.

Applications

The SBR10150CTE is ideal for use in a variety of applications, including:

• Power supply units
• DC-DC converters
• Automotive applications
• Free-wheeling diodes in power inverters
• Polarity protection devices

Conclusion

With its advanced SBR technology, high current capability, and robust thermal performance, the SBR10150CTE from Diodes Incorporated represents a reliable and efficient solution for designers looking to improve power efficiency and thermal management in their electronic systems. Its versatile application range and robust package make it an excellent choice for a wide variety of power management tasks.
