Product Overview: SBR2065D1-13

The SBR2065D1-13 is a high-performance Super Barrier Rectifier (SBR) from Diodes Incorporated, designed to meet the rigorous demands of today's power management applications. This rectifier is a preferred choice for engineers looking to enhance efficiency, thermal performance, and reliability in their designs.

Key Features

• Low Forward Voltage Drop: The SBR2065D1-13 boasts a low forward voltage drop, which significantly reduces power losses and improves efficiency in operation.
• High Surge Current Capability: With its robust surge current capability, this device can handle high overcurrent conditions, making it suitable for applications that experience transient surges.
• Super Barrier Design: The super barrier design provides superior performance compared to traditional Schottky diodes, with enhanced thermal characteristics and a lower leakage current.

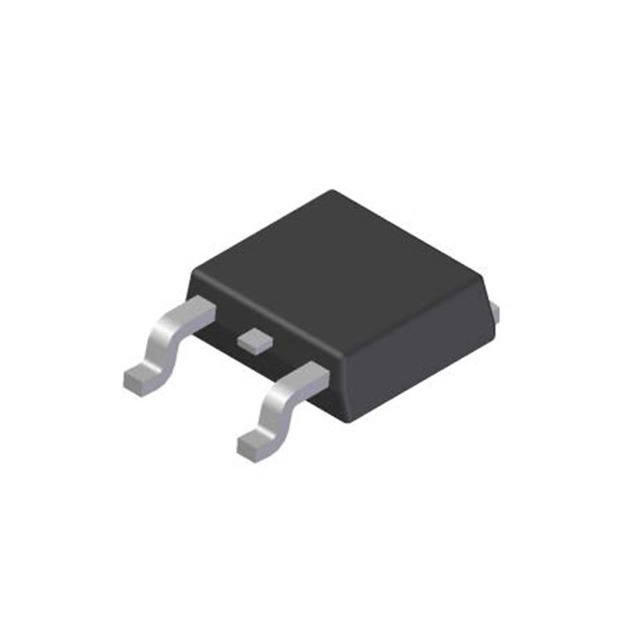

• Power Pack 5 Package: Enclosed in a Power Pack 5 package, the SBR2065D1-13 offers a compact footprint while ensuring high thermal performance and power density.

Applications

The versatile SBR2065D1-13 is ideal for a wide range of applications, particularly in power conversion systems. Its high efficiency and reliability make it well-suited for:

• Switch Mode Power Supplies (SMPS)
• DC-DC Converters
• Free-Wheeling Diodes in Power Inverters
• Power Factor Correction (PFC) Circuits
• Reverse Battery Protection
• Automotive Applications

Technical Specifications

The SBR2065D1-13 operates with a repetitive peak reverse voltage (VRRM) of 65V and a forward continuous current (IF) of 20A, ensuring suitability for high-power applications. Its operating junction temperature range from -55°C to +150°C allows for performance stability across various environmental conditions.

Quality and Environmental Compliance

Diodes Incorporated is committed to providing environmentally friendly products that meet the industry's current regulations. The SBR2065D1-13 is compliant with RoHS and Green standards, ensuring minimal impact on the environment while providing a safe solution for electronic devices.

In summary, the SBR2065D1-13 from Diodes Incorporated represents a state-of-the-art solution for engineers seeking to optimize their power management systems with a rectifier that offers high efficiency, robust performance, and environmental compliance.
