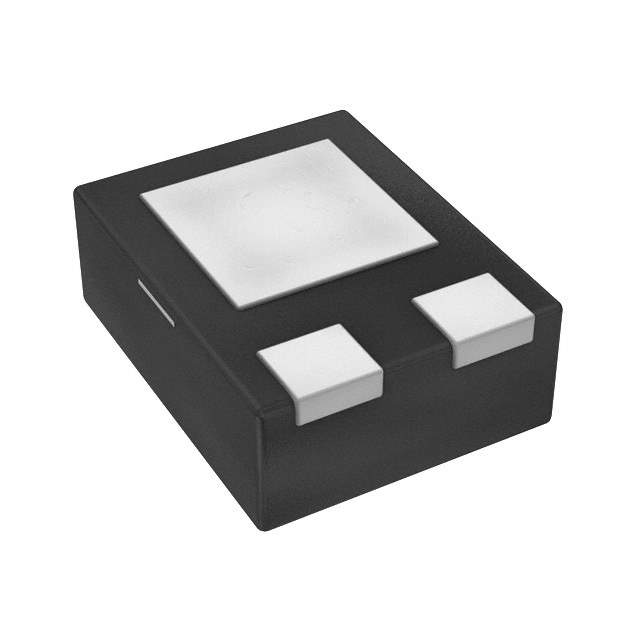

The SBR2U10LP-13 from Diodes Incorporated is a state-of-the-art Super Barrier Rectifier (SBR) designed for applications requiring low forward voltage drop, high current capability, and outstanding thermal performance. This rectifier is ideal for use in high-efficiency power supplies, lighting applications, and as a freewheeling diode in power switches.

Key Features

• Low Power Loss: The SBR2U10LP-13 features a low forward voltage drop, which results in reduced power loss and improved efficiency, making it suitable for energy-sensitive applications.
• High Surge Capability: With its robust surge handling capability, this product can withstand high transient currents, ensuring reliability in challenging conditions.
• Ultra-Low Profile Package: The PowerDI123 package is designed with an ultra-low profile, which is ideal for applications where space is at a premium.
• Lead-Free and RoHS Compliant: This component is environmentally friendly, complying with current RoHS directives, and is completely lead-free, ensuring its suitability for future electronics without environmental concerns.

Electrical Characteristics

The SBR2U10LP-13 has a maximum average rectified current of 2A, making it capable of handling moderate power levels. The device also has a low forward voltage of 1.0V, contributing to its high efficiency. Its operating junction temperature range is from -55°C to +150°C, allowing for use in a wide range of environmental conditions.

Applications

Thanks to its compact footprint and high-performance characteristics, the SBR2U10LP-13 is well-suited for a variety of applications, including:

• DC/DC converters
• AC/DC power supplies
• LED lighting
• Battery charging circuits
• Reverse polarity protection

Quality and Support

Diodes Incorporated is known for its commitment to quality, and the SBR2U10LP-13 is no exception. It is manufactured in facilities that are certified to industry standards, ensuring reliability and performance. Additionally, Diodes Incorporated offers comprehensive technical support for the SBR2U10LP-13, including datasheets, application notes, and design tools to assist engineers in integrating this component into their designs.
