The SBRT4U10LP-7 is a state-of-the-art Super Barrier Rectifier (SBR®) from Diodes Incorporated, designed to deliver high-performance and efficiency in a range of applications. This rectifier is part of the SBR series, which is renowned for providing lower forward voltage drop and superior reverse leakage performance compared to traditional Schottky rectifiers. The SBRT4U10LP-7 is particularly suitable for low voltage, high frequency inverters, free-wheeling, and polarity protection applications.

Key Features

• Low Profile Package: With an ultra-thin profile, this component is perfect for applications where space is at a premium, enabling sleeker and more compact designs.

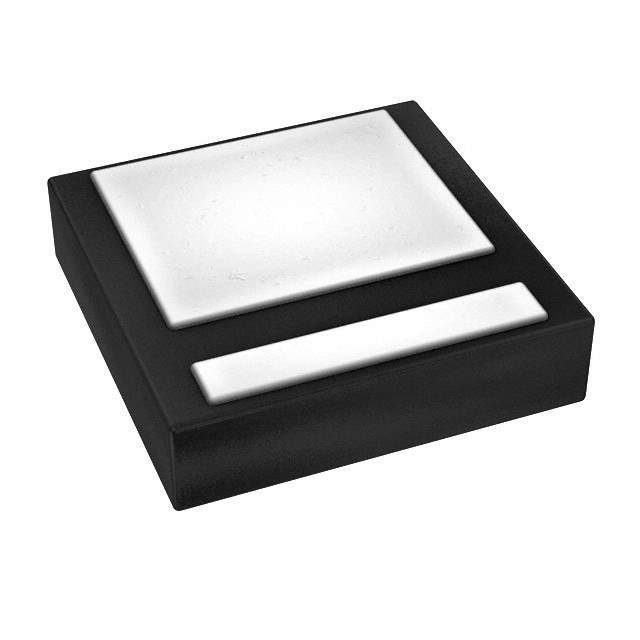

• PowerDI®5 Footprint: The SBRT4U10LP-7 utilizes the PowerDI®5 package, which ensures a small footprint on the PCB while offering excellent thermal performance.
• High Surge Capability: This rectifier is capable of withstanding high surge currents, making it reliable in demanding situations where power spikes are common.
• Low Thermal Resistance: The device features low thermal resistance, which contributes to better overall efficiency by reducing heat build-up and improving reliability.
• Environmentally Friendly: It is lead-free, halogen-free, and RoHS compliant, minimizing the ecological impact and ensuring compliance with global environmental regulations.

Electrical Characteristics

• Low Forward Voltage: The SBRT4U10LP-7 provides a low forward voltage drop, which enhances power efficiency and reduces energy losses during operation.
• High Reverse Avalanche Energy: This feature allows the device to handle brief high-energy events, further contributing to its robustness.
• 10A Continuous Forward Current: The device can sustain a continuous forward current of 10A, making it suitable for high current applications.
• 100V Reverse Voltage: It is designed to block up to 100V in the reverse direction, providing a good safety margin for most low voltage applications.

Applications

The versatility of the SBRT4U10LP-7 allows it to be used in various applications including:

• DC/DC converters
• AC/DC power supplies
• Automotive systems
• Backlighting applications
• Power management solutions

In summary, the SBRT4U10LP-7 from Diodes Incorporated is an exceptional choice for designers looking for a high-efficiency, robust, and compact rectifier solution. Its superior electrical performance and low profile design make it an ideal choice for modern electronic applications where efficiency and space constraints are critical considerations.
