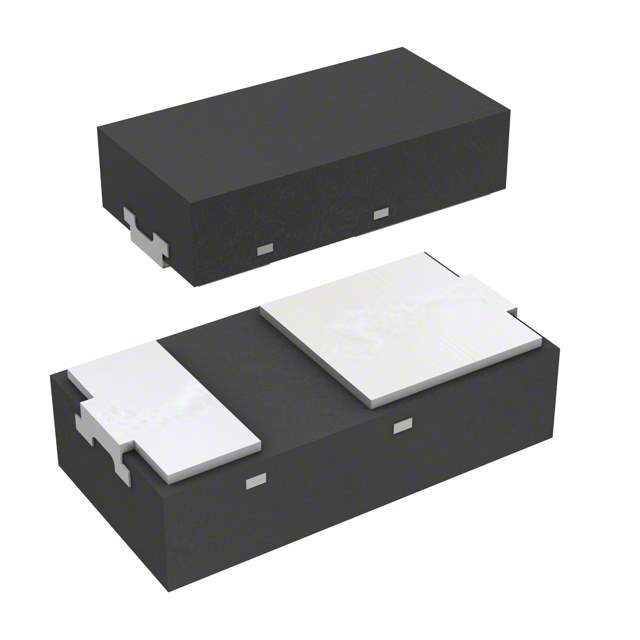

Introducing the SDM1M40LP8-7 Power Schottky Diode from Diodes Incorporated

The SDM1M40LP8-7 is a cutting-edge power Schottky diode designed and manufactured by the renowned semiconductor company, Diodes Incorporated. This diode is engineered to deliver high-efficiency, low-power loss performance for a wide range of applications. Its compact form factor, combined with its robust capabilities, makes it an ideal choice for designers looking to optimize their power management systems.

Key Features and Benefits

• Low Forward Voltage Drop: The SDM1M40LP8-7 boasts a low forward voltage drop, which enhances system efficiency by minimizing power loss during operation. This feature is particularly beneficial in applications where power conservation is critical.
• High Surge Current Capability: With its ability to handle high surge currents, this diode is well-suited for environments where electrical surges are a concern, ensuring reliability and longevity of the electronic components.
• PowerDI®5 Package: Encased in Diodes Incorporated's proprietary PowerDI®5 package, the SDM1M40LP8-7 is not only space-saving but also offers exceptional thermal performance, making it suitable for high-density circuit designs.
• Lead-Free and RoHS Compliant: In line with modern environmental standards, this product is lead-free and complies with the RoHS directive, making it a responsible choice for eco-conscious businesses.

Applications

The versatility of the SDM1M40LP8-7 allows it to be used in a diverse array of applications. It is particularly well-suited for:

• DC-DC Converters
• Power Supply Oring
• Freewheeling Diodes
• Reverse Battery Protection
• Load Switching
• High-frequency Rectification

Technical Specifications

With a maximum average rectified current of 1A and a peak reverse voltage of 40V, the SDM1M40LP8-7 is capable of meeting the demands of various electronic circuits. Its operating junction temperature range spans from -55°C to +150°C, accommodating a wide thermal spectrum for different working environments.

For engineers and designers looking for a reliable and efficient power Schottky diode, the SDM1M40LP8-7 from Diodes Incorporated stands out as a superior choice. Its blend of low power loss, high surge capability, and compact packaging makes it a versatile and indispensable component in modern electronic designs.
