SMCJ85CAQ-13-F - Diodes Incorporated

The SMCJ85CAQ-13-F from Diodes Incorporated is a high-quality, robust transient voltage suppressor (TVS) diode designed to protect sensitive electronic equipment from voltage transients induced by system inductive load switching and lightning. This TVS diode is specifically engineered to safeguard voltage-sensitive components from destruction or degradation, making it an essential component for a wide range of applications including industrial, automotive, telecommunications, and consumer electronics.

Key Features:

• Reverse Stand-Off Voltage: The device has a reverse stand-off voltage of 85V, providing a high level of protection for electronic circuits that may experience high transient voltages.
• Peak Pulse Power: It can handle a peak pulse power of 1500 Watts for a short duration of time (10/1000μs waveform), ensuring that sudden surges are effectively clamped.
• Bi-directional Protection: As a bi-directional TVS, the SMCJ85CAQ-13-F can protect circuits from surges occurring in both directions along the signal or power line.
• Low Incremental Surge Resistance: The device offers an extremely low incremental surge resistance, minimizing the voltage drop across the diode when a surge occurs.
• Compliance: It meets the ISO 7637-2 & 3 surge specification and is compliant with the RoHS directive, making it suitable for use in environmentally-sensitive applications.

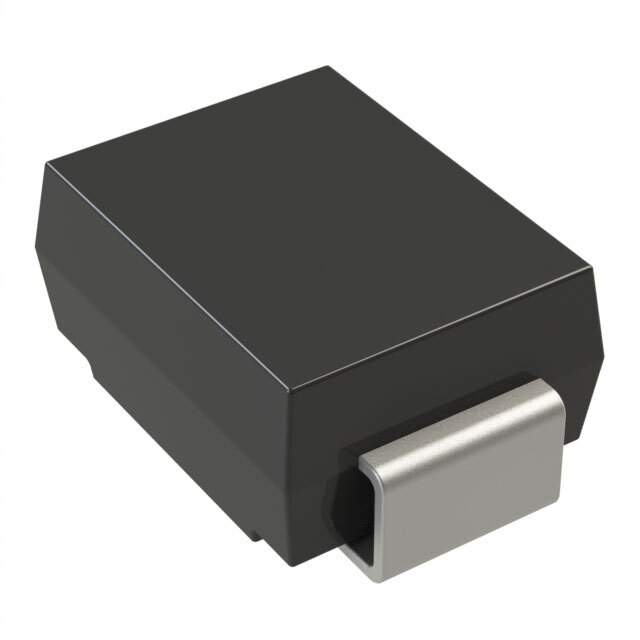

• Package: Housed in an SMC package, it provides a compact footprint and is ideal for high-density circuit board designs.

Applications:

• Protection of I/O interfaces
• VCC bus and other vulnerable circuits
• Telecommunication devices
• Power supply units
• Automotive control systems
• Industrial systems

The SMCJ85CAQ-13-F is a testament to Diodes Incorporated's commitment to providing high-quality, reliable components for the protection of electronic systems. Its combination of high surge capability, bi-directional protection, and compliance with industry standards make it a top choice for designers looking to enhance the durability and longevity of their products.
