The ZX5T849GTA is a high-performance, low-saturation PNP transistor from Diodes Incorporated, a leading global manufacturer and supplier of high-quality application-specific standard products within the broad discrete, logic, analog, and mixed-signal semiconductor markets. This transistor is designed for applications requiring low voltage operation and efficient current regulation, making it an ideal choice for power management in portable devices, as well as for switch and amplifier applications.

Key Features

• Low V<sub>CE(sat): The ZX5T849GTA boasts a low collector-emitter saturation voltage, which enhances its efficiency by minimizing power loss during operation.
• High Current Gain: With a high current gain (h<sub>FE), this transistor can amplify a small input current into a larger output current, making it suitable for amplification applications.
• Power Dissipation: It has a power dissipation of 2W, which allows it to handle moderate power levels in compact electronic circuits.
• High Maximum Collector Current: The device supports a maximum collector current (I<sub>C) of up to 5A, providing robust current handling capability for various applications.
• RoHS Compliant: ZX5T849GTA is compliant with RoHS standards, ensuring that it is manufactured with a focus on environmental safety and sustainability.

Applications

The ZX5T849GTA is versatile and can be used in a wide range of applications, including but not limited to:

• Power management modules
• DC-DC converters
• Battery-powered devices
• Motor control circuits
• Signal amplification

Quality and Reliability

Diodes Incorporated is committed to providing high-quality products. The ZX5T849GTA is built with stringent quality control processes and is designed to meet the reliability requirements of the most demanding electronic systems. Customers can trust the performance and longevity of this transistor in their electronic designs.

Package and Availability

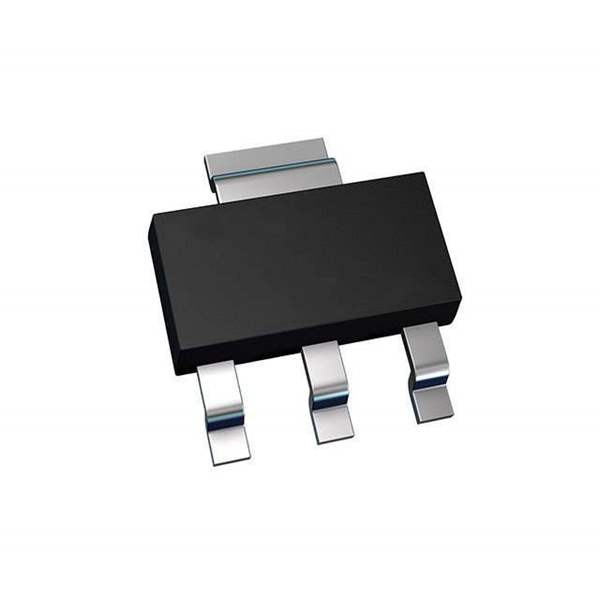

The ZX5T849GTA comes in a small SOT-223 package, which is suitable for automated assembly processes and is designed to optimize board space. Check with Diodes Incorporated or authorized distributors for availability and bulk order options.
