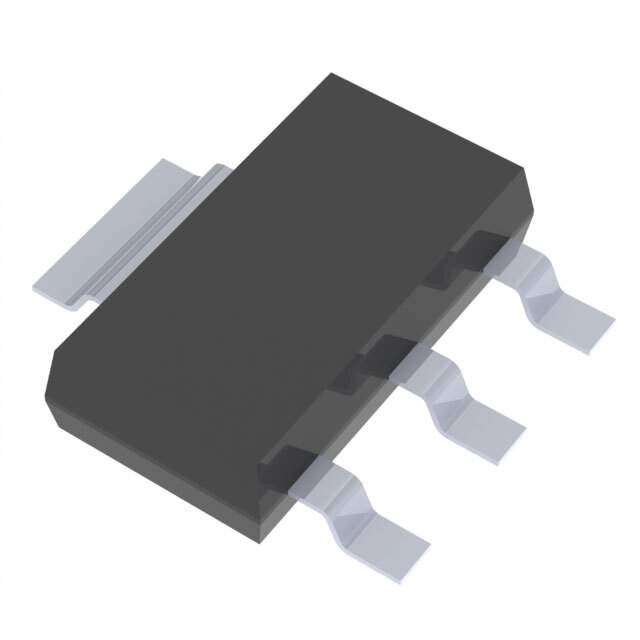

The ZXMS6001N3QTA is a high-performance, self-protected Low-Side Intelligent Power Switch (LIPS) designed by Diodes Incorporated to provide a cutting-edge solution for power management and distribution in a wide array of applications. This advanced switch is housed in a compact SOT223 package, making it an ideal choice for space-constrained applications.

Key Features

• Integrated Protection: The device features built-in over-temperature, over-current, and over-voltage protection, safeguarding connected components from potential damage.
• High Current Capability: Capable of handling continuous current up to 1.7A, the ZXMS6001N3QTA is suited for driving moderate to high-power loads.
• Low On-Resistance: With an on-resistance of just 150mΩ, the switch ensures high efficiency and minimal power loss during operation.
• Fast Switching Speed: The device offers rapid switching performance, which is essential for applications requiring quick response times.
• Diagnostic Feedback: An integrated status flag output provides diagnostic feedback, which can be used for fault indication or as part of a microcontroller-based control system.
• Logic-Level Input: The switch can be easily controlled by logic-level signals, making it compatible with most microcontrollers and digital circuits.

Applications

The ZXMS6001N3QTA is versatile and can be used in a variety of applications, including:

• Automotive subsystems
• Industrial control systems
• Smart home devices
• Power management modules
• Motor control circuits

Quality and Reliability

Diodes Incorporated is known for its commitment to quality and reliability, and the ZXMS6001N3QTA is no exception. It is designed to meet stringent industry standards, ensuring long-term performance and stability in even the most demanding environments.

Whether you are developing automotive systems, industrial controls, or consumer electronics, the ZXMS6001N3QTA from Diodes Incorporated offers the efficiency, protection, and performance required for your power switching needs.
