Products specifications

Manufacturer DIOO
Type High Side
Number of Outputs 1 Output
Output Current 2.31 A
Current Limit 2.57 A
On Resistance - Max 91 mOhms
On Time - Max 270 us
Off Time - Max 7 us
Operating Supply Voltage 2.7 V to 5.5 V

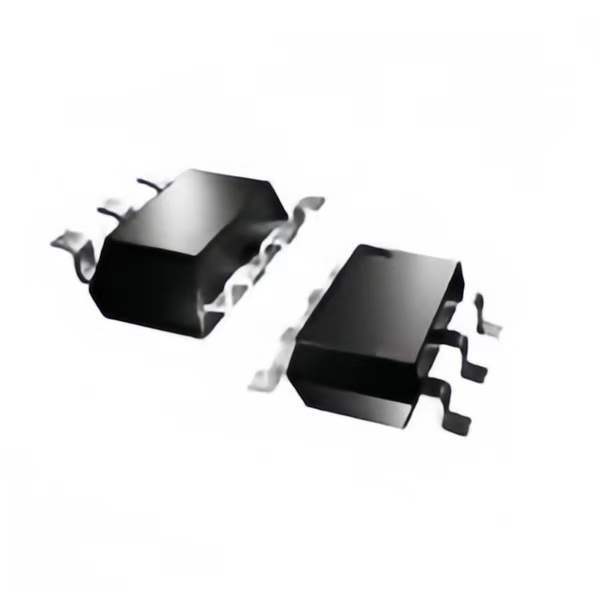

Package / Case DFN-6
Ultra Librarian 3D Model Ultra Librarian DIO7552CD6 CAD Model

Description

The DIO7552/7553 is power distributionswitchesthat intended for applications whereprecisioncurrent limiting is required or heavycapacitiveloads and short circuits are encountered. Thedevice provides up to 2.31 A of continuousloadcurrent. When the voltage is higher thanthemaximum voltage of 5%, the chipcouldbemaintained for at least 10 ms without damage.A programmable current-limit thresholdisofferedbetween 400 mA and 2.57 A (typ) via anexternalresistor. Current-limit accuracy is ±10%at 1A.The power-switch rise and fall timesarecontrolled to minimize current surges duringturnon/off. A constant-current mode is usedwhentheoutput load exceeds the current-limit threshold.The DIO7552/7553 limits the output current toasafe level by using a constant-current modewhenthe output load exceeds the current-limitthreshold. An internal reverse voltage comparatordisables the power switch whentheoutputvoltage is driven higher than the input toprotectdevices on the input side.
