Same model may have multiple batches, images only for reference.

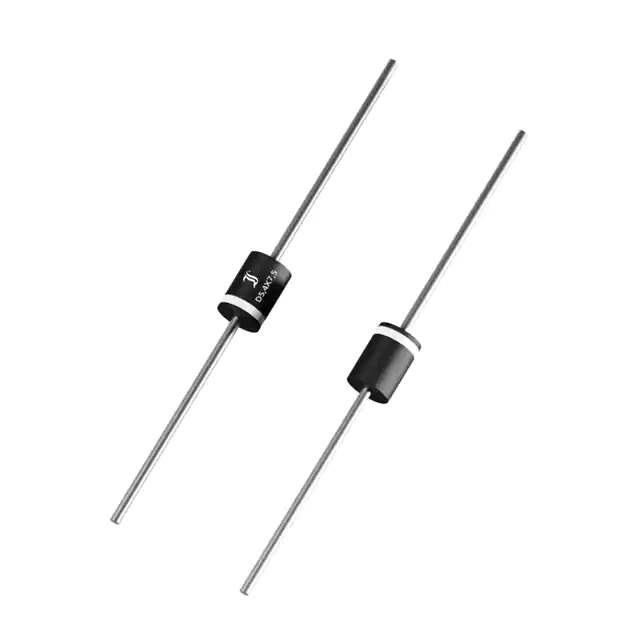

BY550-800 Real Image
Same model may have multiple batches, images only for reference.

BY550-800

Part No BY550-800
Manufacturer DIOTEC Electronics Corporation
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 800V 5A DO201
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 800 V
Current - Average Rectified (Io) 5A
Voltage - Forward (Vf) (Max) @ If 1 V @ 5 A
Speed Standard Recovery >500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.5 µs
Current - Reverse Leakage @ Vr 5 µA @ 800 V
Mounting Type Through Hole
Package / Case DO-201AA, DO-27, Axial
Supplier Device Package DO-201
Operating Temperature - Junction -50°C ~ 175°C
Standard Package 1,250 pcs
MSL Level Not Applicable
HTSUS 8541.10.0000
Win Source Part Number 573903-BY550-800
Ultra Librarian 3D Model Ultra Librarian BY550-800 CAD Model

Description

The 573903-BY550-800 is a single diode rectifier that belongs to the category of discrete semiconductor products.

  • Category: Discrete Semiconductor Products
  • Diode Configuration: Single
  • Recovery Type: Standard Recovery
  • Speed: Greater than 500ns
  • Current Rating: Greater than 200mA
  • Maximum DC Reverse Voltage: 800V
  • Average Rectified Current: 5A
  • Forward Voltage Drop: 1V @ 5A
  • Reverse Recovery Time: 1.5μs
  • Reverse Leakage Current: 5μA @ 800V
  • Package: DO-201AA
  • Mounting Type: Through-Hole
  • Standard Package: 1,250 pieces
  • Manufacturer: DIOTEC Electronics Corporation
  • Status: Active
