ESD3Z5V0
Same model may have multiple batches, images only for reference.

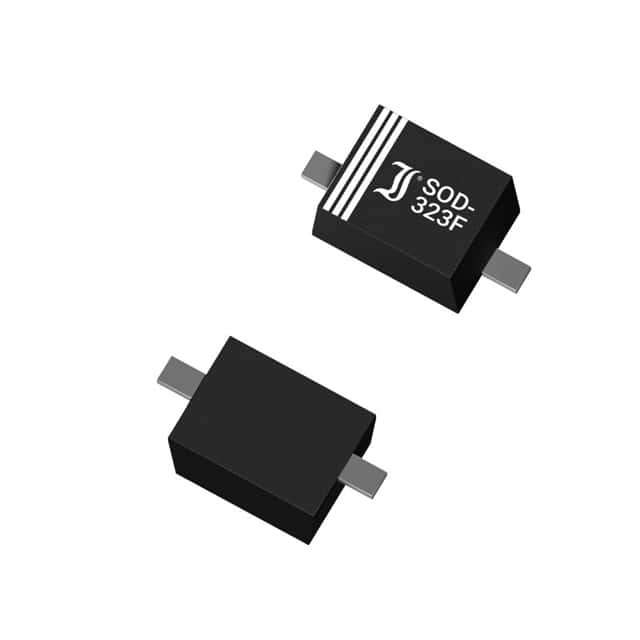

ESD3Z5V0

Part No ESD3Z5V0
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS, 6.00V-9.80V, 350W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr DIOTEC Electronics Corporation
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 14.5V
Current - Peak Pulse (10/1000µs) 24A (8/20µs)
Power - Peak Pulse 350W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 350pF @ 1MHz
Temperature Range - Operating -50°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case SC-90, SOD-323F
Supplier Device Package SOD-323F
Standard Package 750 pcs
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Win Source Part Number 871153-ESD3Z5V0
Ultra Librarian 3D Model Ultra Librarian ESD3Z5V0 CAD Model

Description

The 871153-ESD3Z5V0 is a TVS diode used in circuit protection applications. It is manufactured by DIOTEC Electronics Corporation.

  • Diode Type: Unidirectional Zener
  • Reverse Standoff Voltage: 5V
  • Breakdown Voltage: 6V
  • Clamping Voltage: 14.5V @ a peak pulse power of 350W
  • Capacitance: 350pF @ a frequency of 1MHz
  • Peak Pulse Current: 24A @ 8/20μs
  • Mounting Type: Surface Mountable
  • Package: SC-90, SOD-323F
  • Operating Temperature Range: -50°C to 125°C
  • Product Status: Active
