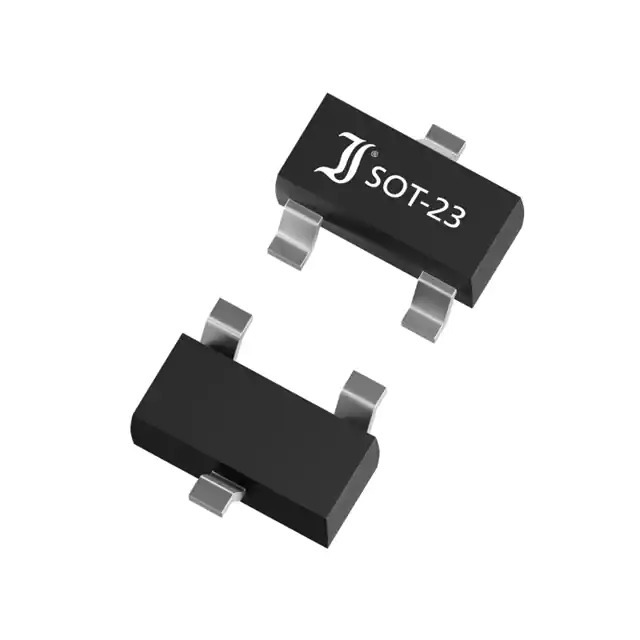

Same model may have multiple batches, images only for reference.
ESD5V0CA DIOTEC Electronics Corporation
Same model may have multiple batches, images only for reference.

ESD5V0CA

Part No ESD5V0CA
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC SOT23-3 / 12.5V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount SOT-23-3 (TO-236)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Diotec Semiconductor
Series -
Package Tape & Reel
Product Status Active
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 5V
Voltage - Breakdown (Min) 6V
Voltage - Clamping (Max) @ Ipp 12.5V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 200W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 400pF @ 1MHz
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-236-3, SC-59, SOT-23-3
Supplier Device Package SOT-23-3 (TO-236)
MSL Level 1 (Unlimited)
HTSUS 8541.10.0000
Win Source Part Number 1362314-ESD5V0CA
Ultra Librarian 3D Model Ultra Librarian ESD5V0CA CAD Model

Description

The ESD5V0CA is a Zener type TVS diode from Diotec Semiconductor.

  • Voltage - Reverse Standoff (Typ): 5V
  • Voltage - Breakdown (Min): 6V
  • Voltage - Clamping (Max) @ Ipp: 12.5V @ 5A
  • Power - Peak Pulse: 200W
  • Type: Bidirectional
  • Capacitance @ Frequency: 400pF @ 1MHz
  • Applications: General Purpose
  • Mounting Type: Surface Mount
  • Package / Case: SOT-23-3 (TO-236)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Supplier Device Package: SOT-23
