Same model may have multiple batches, images only for reference.

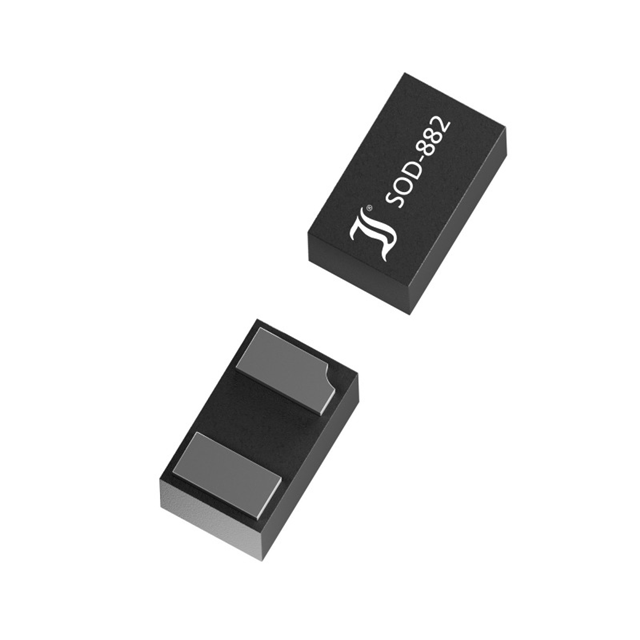

ESDBK3V3 Real Image
Same model may have multiple batches, images only for reference.

ESDBK3V3

Part No ESDBK3V3
Manufacturer DIOTEC Electronics Corporation
Catalog TVS - Diodes
Description ESD Diode, 3.3V, 60W  /  9V Clamp 7A (8/20µs) Ipp Tvs Diode Surface Mount SOD-882 (DFN1006-2)
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>TVS - Diodes
Mfr Diotec Semiconductor
Package Tape & Reel (TR)
Type Zener
Bidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V
Voltage - Breakdown (Min) 4V
Voltage - Clamping (Max) @ Ipp 9V
Current - Peak Pulse (10/1000µs) 7A (8/20µs)
Power - Peak Pulse 60W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 15pF @ 1MHz
Temperature Range - Operating -50°C ~ 150°C (TJ)
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package SOD-882 (DFN1006-2)
MSL Level Not Applicable
REACH Status REACH info available upon request
HTSUS 8541.10.0000
Other Names 2721-ESDBK3V3TR
Standard Package 50
Win Source Part Number 1057944-ESDBK3V3
Ultra Librarian 3D Model Ultra Librarian ESDBK3V3 CAD Model

Description

The ESDBK3V3 is a bidirectional channel Zener diode with a voltage rating of 3.3V and a breakdown voltage of 4V.

  • Clamping Voltage: 9V @ Ipp
  • Peak Pulse Power: 60W
  • Capacitance: 15pF @ 1MHz
  • Peak Pulse Current: 7A (8/20µs)
  • Mounting: surface mount device
  • Package: SOD-882 package
  • Supplier Device Package: SOD-882 (DFN1006-2)
  • Operating Temperature Range: -50°C ~ 150°C (TJ)
