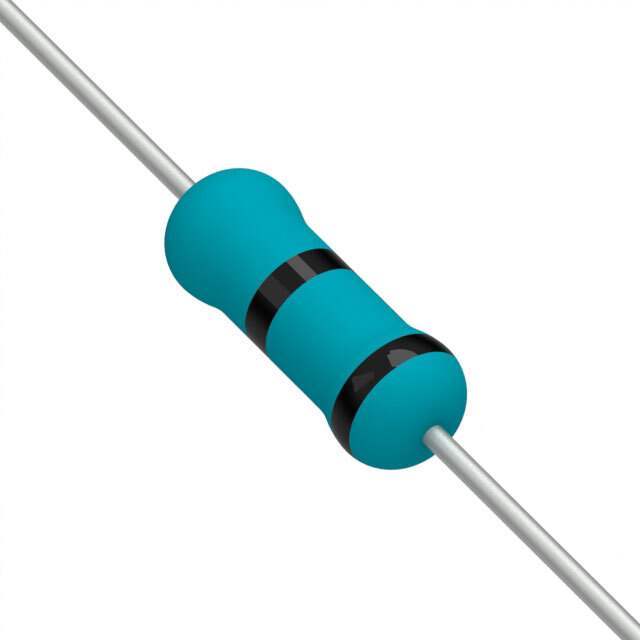

Same model may have multiple batches, images only for reference.
SFR25000Z0000ZR500 Vishay
Same model may have multiple batches, images only for reference.

SFR25000Z0000ZR500

Part No SFR25000Z0000ZR500
Manufacturers Draloric , Vishay
Catalog Through Hole Resistors
Description RES 0 OHM JUMPER MF
Datasheet
SFR25000Z0000ZR500 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1307685-SFR25000Z0000ZR500
Manufacturer Vishay
Category Resistors>Through Hole Resistors
Packaging  Tape & Reel (TR) Cut Tape (CT)
Part Status Obsolete
Resistance (Ohms) 0 Ohms
Tolerance (+ or -) Jumper
Power (Watts) 0.4W
Composition Metal Film
Operating Temperature -55°C ~ 155°C
Package / Case Axial
Ultra Librarian 3D Model Ultra Librarian SFR25000Z0000ZR500 CAD Model

Description

A homogeneous film of metal alloy is deposited on a high grade ceramic body. After a helical groove has been cut in the resistive layer, tinned connecting leads of electrolytic copper are welded to the end-caps. The resistors are coated with a colored lacquer (light-blue for type SFR16S; light-green for type SFR25 and red-brown for type SFR25H) which provides electrical, mechanical, and climatic protection. The encapsulation is resistant to all cleaning solvents in accordance with IEC 60068-2-45.
