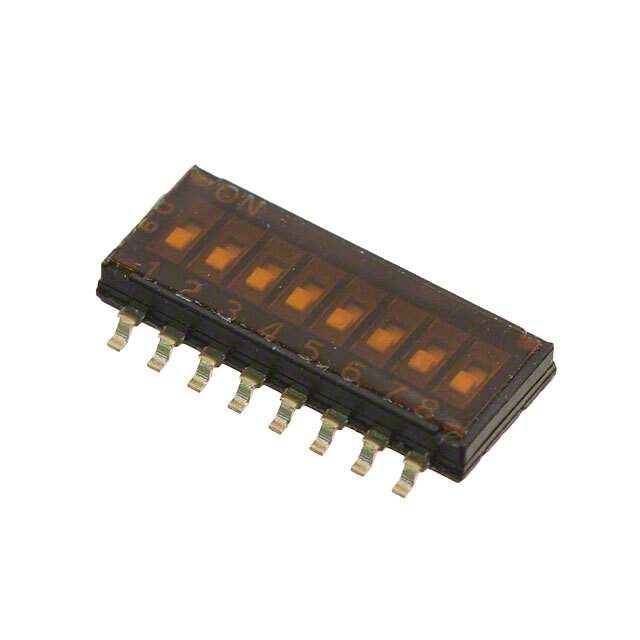

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Manufacturer E-Switch
Packaging Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting Style SMD
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable Yes
Features Tape Seal
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyphenylene Sulfide (PPS)
Length 0.448" (11.39mm)
Mechanical Life 2,000 Cycles
Electrical Life 2,000 Cycles
Manufacturer Pack Quantity 40
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 811020-KAN1108RT
Ultra Librarian 3D Model Ultra Librarian KAN1108RT CAD Model

Description

The E-Switch 811020-KAN1108RT is a surface mount slide switch.

  • Positions: 8
  • Pitch: 0.050" (1.27mm), half
  • Termination Style: Gull Wing
  • Features: Tape Seal
  • Contact Finish: Gold
  • Contact Material: Copper Alloy
  • Voltage Rating: 24VDC
  • Current Rating: 25mA
  • Height Above Board: 0.063" (1.60mm)
  • Length: 0.448" (11.39mm)
  • Material: Polyphenylene Sulfide (PPS)
  • Circuit: SPST
  • Actuator Type: Slide (Standard)
  • Actuator Level: Flush, Recessed
  • Washable: Yes
  • Operating Temperature: -40°C to 85°C
