Same model may have multiple batches, images only for reference.

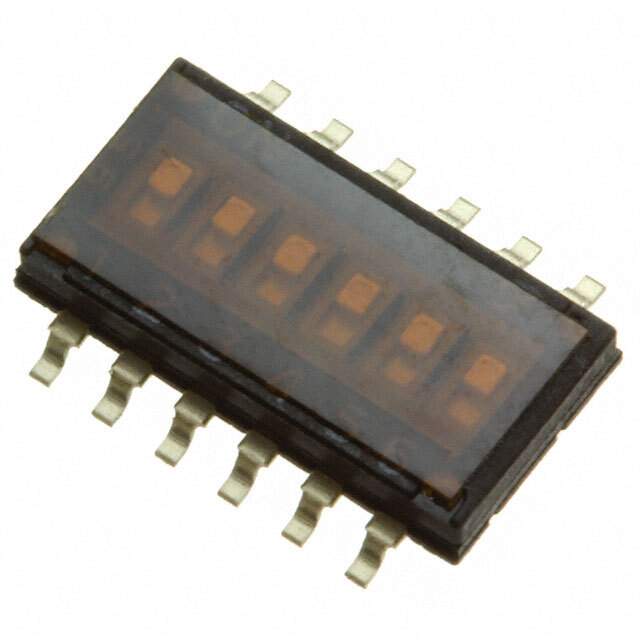

97C08T Real Image
Same model may have multiple batches, images only for reference.

97C08T

Part No 97C08T
Manufacturer Grayhill Inc.
Catalog DIP Switches
Description SWITCH SLIDE DIP SPST 25MA 24V / Dip Switch SPST 8 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - DIP Switches
Mfr Grayhill Inc.
Series 97
Package Tube
Circuit SPST
Number of Positions 8
Current Rating (Amps) 25mA
Voltage Rating 24VDC
Actuator Type Slide (Standard)
Actuator Level Flush, Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.063" (1.60mm)
Mounting Type Surface Mount
Termination Style Gull Wing
Pitch 0.050" (1.27mm) , Half
Washable No
Temperature Range - Operating -40°C ~ 85°C
Body Material Polyamide (PA) , Nylon
Length 0.448" (11.39mm)
Mechanical Life 1,000 Cycles
Base Product Number 97C08
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1339923-97C08T
Ultra Librarian 3D Model Ultra Librarian 97C08T CAD Model

Description

The Grayhill Inc. 97 series DIP switch from Grayhill Inc. is a single-pole, single-throw (SPST) switch that comes with 8 positions and a pitch of 0.050" (1.27mm).

  • Circuit: SPST
  • Number of Positions: 8
  • Pitch: 0.050" (1.27mm)
  • Termination Style: Gull Wing
  • Contact Material: Copper Alloy
  • Contact Finish: Gold
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Height Above Board: 0.063" (1.60mm)
  • Length: 0.448" (11.39mm)
  • Body Material: Polyamide (PA), Nylon
  • Actuator Type: Slide (Standard)
  • Mechanical Life: 1,000 Cycles
  • Voltage Rating: 24VDC
