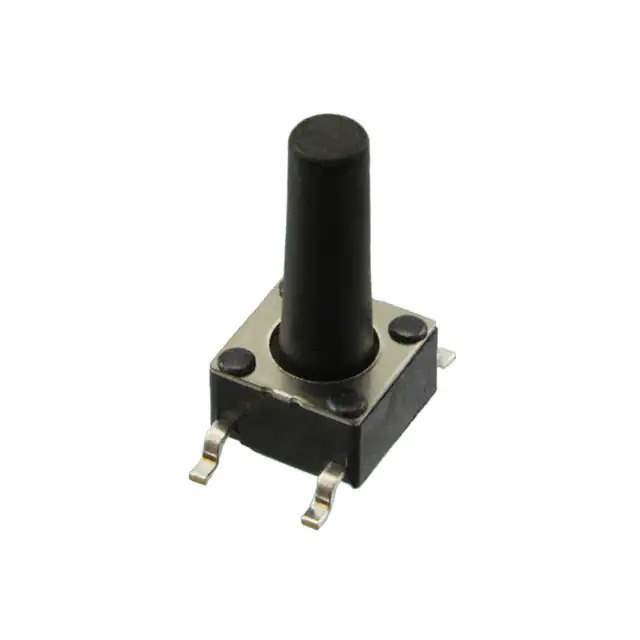

TL3301DF160QG

Name: TL3301DF160QG
Brand: E-Switch
SKU: 849440
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	TL3301DF160QG
Manufacturer	E-Switch
Catalog	Tactile Switches
Description	SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet	TL3301DF160QG Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Switches - Tactile Switches
Mfr	E-Switch
Series	TL3301
Package	Tape & Reel
Product Status	Active
Circuit	SPST-NO
Switch Function	Off-Mom
Contact Rating @ Voltage	0.05A @ 12VDC
Actuator Type	Standard
Mounting Type	Surface Mount
Actuator Height off PCB, Vertical	13.00mm
Actuator Orientation	Top Actuated
Termination Style	Gull Wing
Outline	6.00mm x 6.00mm
Illumination	Non-Illuminated
Operating Force	160gf
Temperature Range - Operating	-20°C ~ 70°C
Actuator Material	Polyamide (PA), Nylon
Switch Travel	0.25mm
Mechanical Life	100,000 Cycles
Base Product Number	TL3301
Standard Package	300 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8536.50.9031
Win Source Part Number	849440-TL3301DF160QG
Ultra Librarian 3D Model	Ultra Librarian TL3301DF160QG CAD Model

Description

The 849440-TL3301DF160QG is a standard tactile switch from the TL3301 series by E-Switch.

Series: TL3301
Type: Tactile Switch
Mounting Type: Surface Mount
Termination Style: Gull-Wing
Contact Rating: 0.05A @ 12VDC
Switch Travel: 0.25mm
Actuator Height off PCB: 13.00mm
Mechanical Life: 100,000 Cycles
Operating Temperature Range: -20°C to 70°C
Illumination: Non-Illuminated
Package: Tape & Reel
Pieces per Reel: 300
Status: Active
