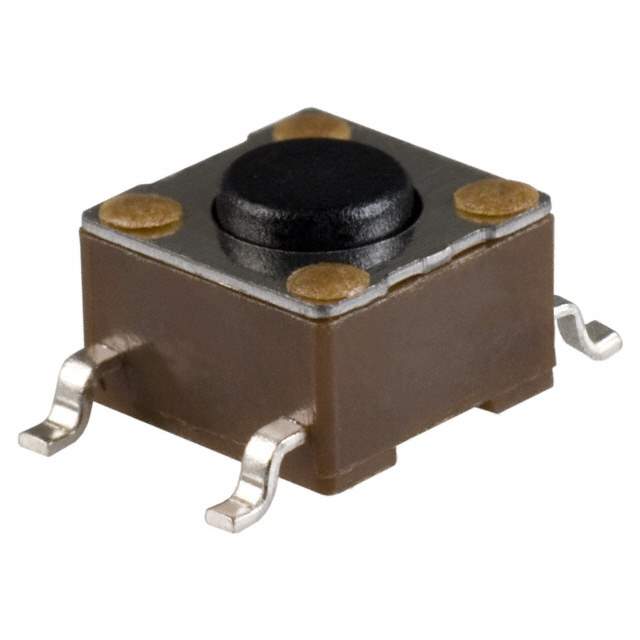

TL3301NF160QG/TR Real Image
Same model may have multiple batches, images only for reference.

TL3301NF160QG/TR

Part No TL3301NF160QG/TR
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer E-Switch
Packaging Reel - TR
Status Active
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 6.00mm x 6.00mm
Illumination Non-Illuminated
Operating Force 160gf
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Temperature Range - Operating -20°C to 70°C
Win Source Part Number 1107703-TL3301NF160QG/TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TL3301NF160QG/TR CAD Model

Description

The E-Switch TL3301NF160QG/TR is a SPST-NO Off-Mom switch that features a standard actuator type and a top actuated orientation.

  • Switch Type: SPST-NO Off-Mom
  • Actuator Type: Standard
  • Actuation Orientation: Top Actuated
  • Switch Travel: 0.25mm
  • Contact Rating: 0.05A @ 12VDC
  • Actuator Material: Polyamide (PA), Nylon
  • Mounting: SMD (SMT)
  • Mechanical Life: 100,000 cycles
  • Operating Force: 160gf
  • Illumination Voltage: Not specified
  • Illumination Type/Color: Not specified
  • Packaging: Reel
  • Termination Style: Gull-wing
  • Outline: 6.00mm x 6.00mm
  • Application: Consumer electronics, medical devices, and automotive systems
  • Operating Temperature Range: -20°C to 70°C
