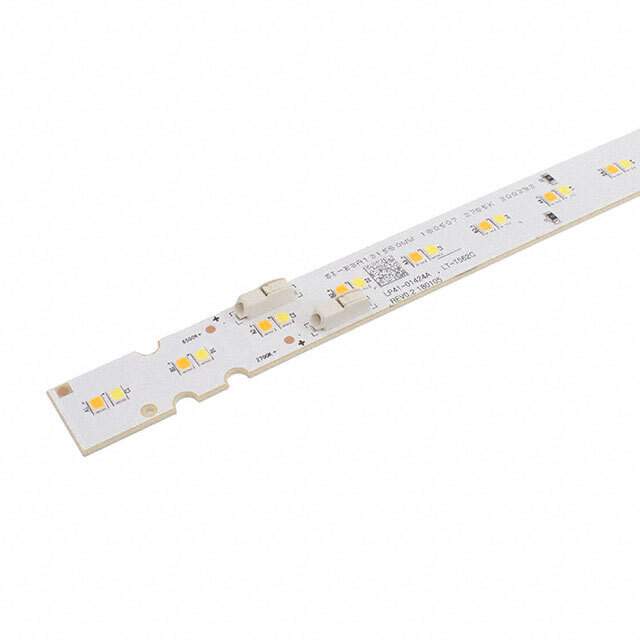

SI-B8A131560WW Real Image
Same model may have multiple batches, images only for reference.

SI-B8A131560WW

Part No SI-B8A131560WW
Manufacturer Samsung
Catalog LED Lighting - COBs, Engines, Modules
Description LINEAR TYPE  /  LED Lighting COBs Engines Modules LED Module series White, Warm / White, Cool Linear Light Strip
Datasheet
SI-B8A131560WW Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Optoelectronics>LED Lighting - COBs, Engines, Modules, Strips
Mfr Samsung Semiconductor, Inc.
Series T
Package Tray
Product Status Obsolete
Type LED Module
Color White, Warm / White, Cool
CCT (K) 2700K, 6500K
Configuration Linear Light Strip
Luminous Flux @ Current/Temperature 1900lm Warm White, 2060lm Cool White
Current - Test 750mA Warm White, 750mA Cool White
Temperature - Test 50°C
Voltage - Forward (Vf) (Typ) 18V Warm White, 18V Cool White
Lumens/Watt @ Current - Test 141 lm/W Warm White, 153 lm/W Cool White
Dimension 560.00mm L x 18.00mm W
Height 5.80mm
Lens Type Flat
Base Product Number SI-B8
Other Names 1510-2308,SI-B8A131560WW
Standard Package 280
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.41.0000
Win Source Part Number 1240336-SI-B8A131560WW
Ultra Librarian 3D Model Ultra Librarian SI-B8A131560WW CAD Model

Description

The SI-B8A131560WW is a T-series LED module manufactured by Samsung Semiconductor, Inc.

  • Manufacturer: Samsung Semiconductor, Inc.
  • Series: T-series
  • Package: tray
  • Standard Package: 280 modules
  • Configuration: linear light strip
  • Color: white, warm/white, or cool light
  • Viewing Angle: 120 degrees
  • CCT (K): 2700K or 6500K
  • Voltage-Forward (Vf): 18V for both warm white and cool white
  • Current-Test: 750mA for both warm white and cool white
  • Luminous Flux: maximum of 1900lm for warm white and 2060lm for cool white
  • Height: 5.80mm
  • Dimension: 560.00mm L x 18.00mm W
