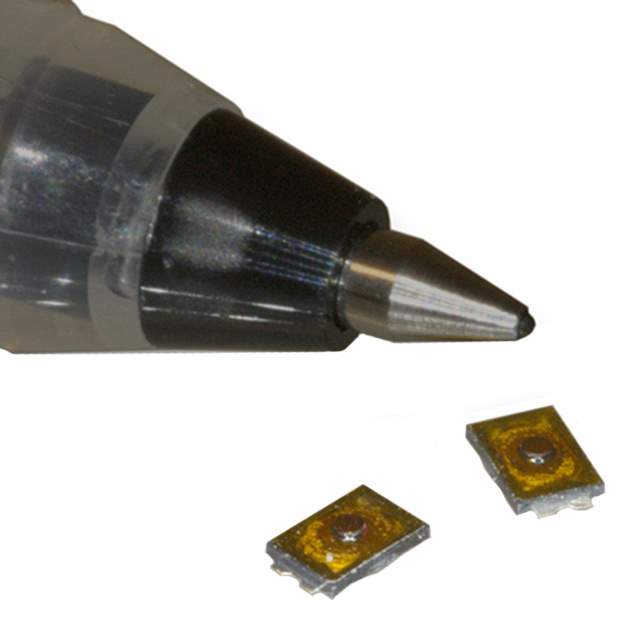

TL3750AF240QG Real Image1 TL3750AF240QG Real Image2
Same model may have multiple batches, images only for reference.
TL3750AF240QG Real Image1 TL3750AF240QG Real Image2
TL3750AF240QG Real Image1 TL3750AF240QG Real Image2
Same model may have multiple batches, images only for reference.

TL3750AF240QG

Part No TL3750AF240QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL3750AF240QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL3750
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 0.58mm
Actuator Length, Right Angle -
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 3.00mm x 2.00mm
Illumination Non-Illuminated
Illumination Type, Color -
Illumination Voltage (Nominal) -
Operating Force 240gf
Ingress Protection -
Features -
Temperature Range - Operating -30°C ~ 85°C
Actuator Material -
Switch Travel 0.13mm
Mechanical Life 300,000 Cycles
Base Product Number TL3750
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Standard Package 17,000 pcs
Win Source Part Number 1383608-TL3750AF240QG
Ultra Librarian 3D Model Ultra Librarian TL3750AF240QG CAD Model

Description

The 1383608-TL3750AF240QG is a tactile switch manufactured by E-Switch. It belongs to the TL3750 series, which is known for its high-quality and reliable performance.

  • Termination Style: Gull Wing
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Standard Package: 17,000 pieces
  • Circuit Configuration: SPST-NO (Single-Pole, Single-Throw Normally Open)
  • Actuator Type: Standard
  • Switch Travel: 0.13mm
  • Operating Force: 240gf
  • Mechanical Life: 300,000 cycles
  • Operating Temperature: -30°C to 85°C
