Same model may have multiple batches, images only for reference.

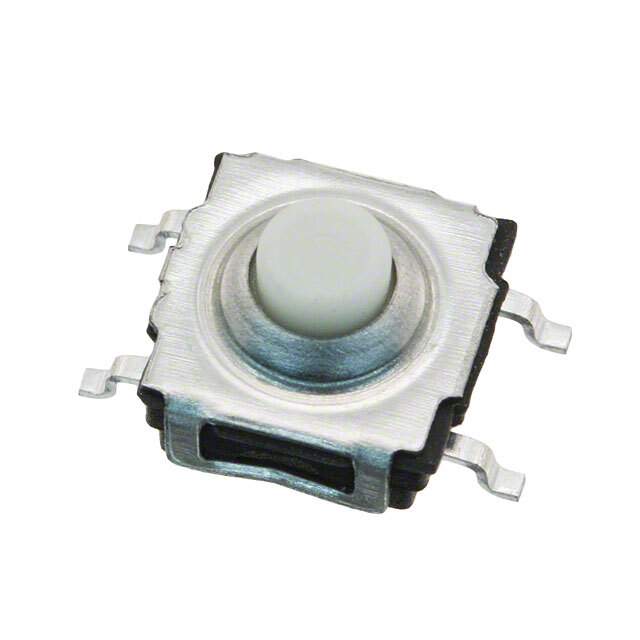

TL6120AF300QG Real Image
Same model may have multiple batches, images only for reference.

TL6120AF300QG

Part No TL6120AF300QG
Manufacturer E-Switch
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V  /  Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
TL6120AF300QG Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches>Tactile Switches
Mfr E-Switch
Series TL6120
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.70mm
Actuator Orientation Top Actuated
Termination Style Gull Wing
Outline 7.40mm x 7.40mm
Illumination Non-Illuminated
Operating Force 300gf
Temperature Range - Operating -40°C ~ 85°C
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.50mm
Mechanical Life 500,000 Cycles
Base Product Number TL6120
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9031
Other Names EG4354TR,Q4514216,EG4354CT,EG4354DKR
Standard Package 700
Win Source Part Number 1157699-TL6120AF300QG
Ultra Librarian 3D Model Ultra Librarian TL6120AF300QG CAD Model

Description

The TL6120AF300QG Tactile Switch from E-Switch is a high-quality product with a SPST-NO circuit and an off-mom switch function.

  • Switch Function: off-mom
  • Circuit: SPST-NO
  • Switch Travel: 0.50mm
  • Operating Force: 300gf
  • Temperature Range: -40°C to 85°C
  • Mechanical Life: 500,000 cycles
  • Package: Tape and Reel
  • Standard Package: 700
  • MSL: 1 (Unlimited)
  • REACH Status: Unaffected
  • HTSUS: 8536.50.9031
  • Base Product Number: TL6120
