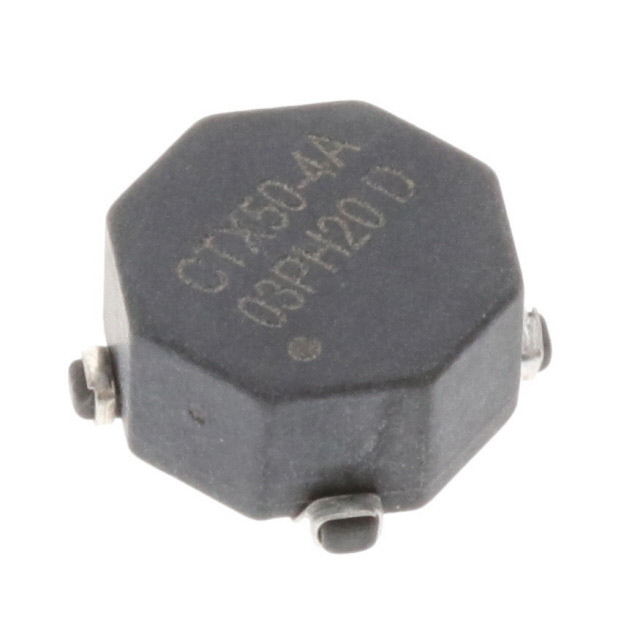

CTX50-4A-R Eaton Bussmann – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

CTX50-4A-R

Part No CTX50-4A-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description Unshielded 2 Coil Inductor Array 200.4 µH Inductance - Connected in Series 50.11 µH Inductance - Connected in Parallel 104mOhm Max DC Resistance (DCR) - Parallel 2.05 A Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Series OCTA-PAC® PLUS
Packaging Reel - TR
Number of Coils 2
Inductance - Connected In Parallel 50.11 µH
Inductance - Connected In Series 200.4 µH
Tolerance ±25%
Current Rating - Parallel 2.05 A
Current Rating - Series 1.03 A
Current Saturation - Parallel 1.88 A
Current Saturation - Series 940 mA
DC Resistance (DCR) - Parallel 104mOhm Max
DC Resistance (DCR) - Series 418mOhm Max
Shielding Unshielded
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.550" L x 0.550" W (13.97mm x 13.97mm)
Height 0.250" (6.35mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 1479999-CTX50-4A-R
Ultra Librarian 3D Model Ultra Librarian CTX50-4A-R CAD Model
