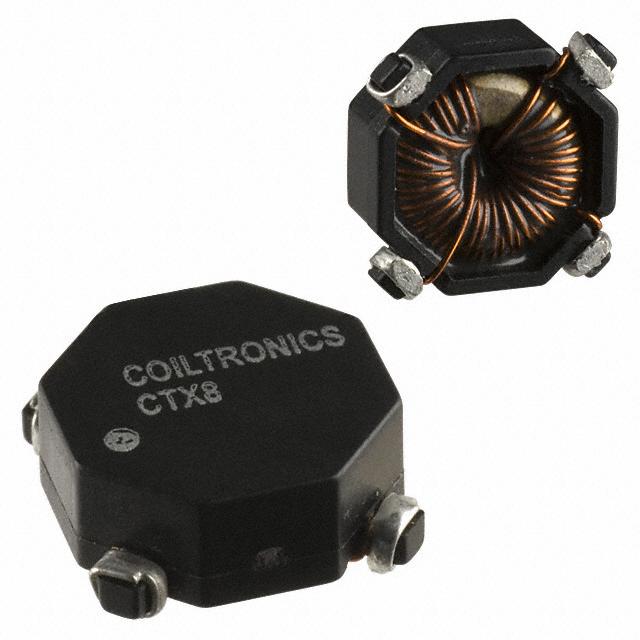

CTX8-3A-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

CTX8-3A-R

Part No CTX8-3A-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 8.43UH SMD
Datasheet
CTX8-3A-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 33.77μH
Inductance - Connected In Parallel 8.43μH
Tolerance ±25%
Current Rating - Parallel 4.23A
Current Rating - Series 2.12A
Current Saturation - Parallel 3.21A
Current Saturation - Series 1.61A
DC Resistance (DCR) - Parallel 23 mOhm Max
DC Resistance (DCR) - Series 93 mOhm Max
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Height 0.190" (4.83mm)
Win Source Part Number 1030811-CTX8-3A-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CTX8-3A-R CAD Model

Description

The Eaton 1030811-CTX8-3A-R is an SMD (SMT) mounted inductor that has a height of 0.190" (4.83mm) and 2 coils.

  • Tolerance: ±25%
  • Operating Temperature Range: -40°C to 85°C
  • Inductance (Parallel): 8.43μH
  • Current Rating (Parallel): 4.23A
  • Current Rating (Series): 2.12A
  • Current Saturation (Parallel): 3.21A
  • Current Saturation (Series): 1.61A
  • DC Resistance (DCR) Parallel: 23 mOhm Max
  • DC Resistance (DCR) Series: 93 mOhm Max
  • Test Inductance (Series): 33.77μH
