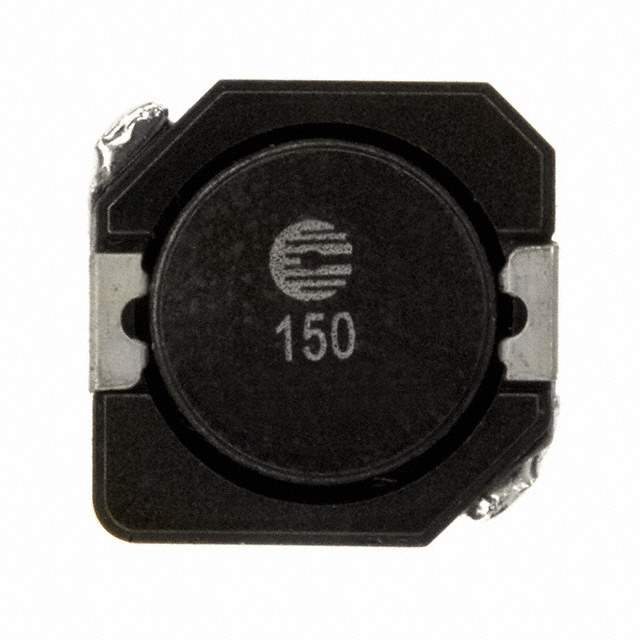

Same model may have multiple batches, images only for reference.

DR1040-150-R

Name: DR1040-150-R
Brand: Eaton Bussmann
SKU: 1055948
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DR1040-150-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 15UH 3.1A 50 MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 3.1 A 50mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	DR1040
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±30%
Current Rating (Amps)	3.1 A
Current - Saturation (Isat)	3.6A
Shielding	Shielded
DC Resistance (DCR)	50mOhm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.157" (4.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	513-1400-6,DR1040150R,513-1400-2,513-1400-1
Standard Package	850
Win Source Part Number	1055948-DR1040-150-R
Ultra Librarian 3D Model	Ultra Librarian DR1040-150-R CAD Model

Alternative Products

Description

The DR1040 series drum core, wirewound fixed inductor by Eaton has an inductance of 15 µH and a current rating of 3.1A.

Inductance: 15 µH
Current Rating: 3.1A
DC Resistance (DCR): 50mOhm max
Tolerance: ±30%
Shielded: Yes
Mounting Type: SMD (SMT)
Core Material: Ferrite
Temperature Range: -40°C to 125°C
Dimension: 0.413" L x 0.406" W (10.50mm x 10.30mm)
