Same model may have multiple batches, images only for reference.

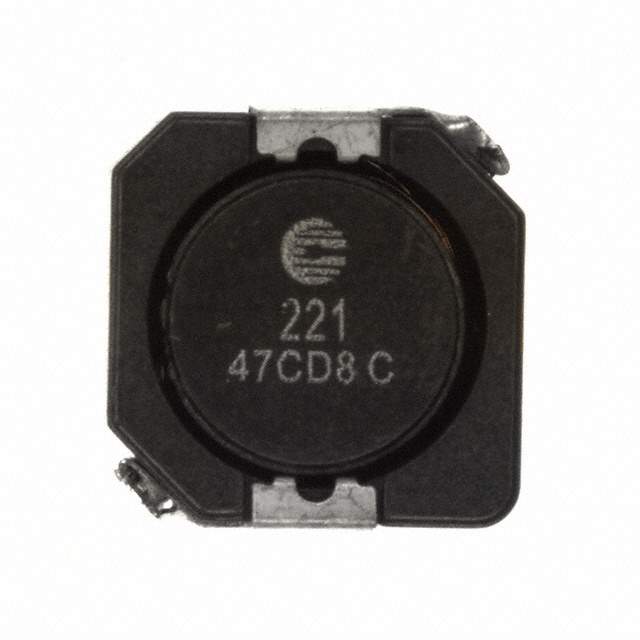

DR1050-221-R Real Image
Same model may have multiple batches, images only for reference.

DR1050-221-R

Part No DR1050-221-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 220UH 1A 472 MOHM SMD / 220 µH Shielded Drum Core, Wirewound Inductor 1 A 472mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Eaton - Electronics Division
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 220 µH
Tolerance ±30%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 980mA
Shielding Shielded
DC Resistance (DCR) 472mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max) 0.197" (5.00mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Part Number 513-1424-2,DR1050221R,513-1424-6,513-1424-1
Standard Package 500
Win Source Part Number 1329568-DR1050-221-R
Ultra Librarian 3D Model Ultra Librarian DR1050-221-R CAD Model

Description

The DR1050-221-R is a fixed inductor manufactured by Eaton - Electronics Division.

  • Manufacturer: Eaton - Electronics Division
  • Core Type: Drum Core
  • Winding Type: Wirewound
  • Shielding: Shielded
  • Inductance: 220 µH
  • Maximum DC Resistance: 472mOhm
  • Tolerance: ±30%
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • Compliance: RoHS3
