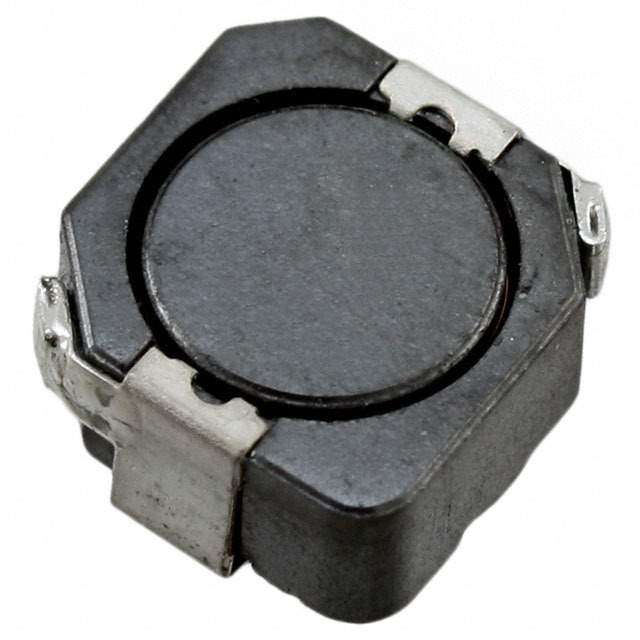

Same model may have multiple batches, images only for reference.

DR1050-681-R

Name: DR1050-681-R
Brand: Eaton Bussmann
SKU: 1327486
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	DR1050-681-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 680UH 560MA 1.369 OHM / 680 µH Shielded Drum Core, Wirewound Inductor 560 mA 1.369Ohm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Eaton - Electronics Division
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	680 µH
Tolerance	±30%
Current Rating (Amps)	560 mA
Current - Saturation (Isat)	550mA
Shielding	Shielded
DC Resistance (DCR)	1.369Ohm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.197" (5.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	DR1050-681-R-ND,283-DR1050-681-RCT,283-DR1050-681-RTR,283-DR1050-681-RDKR
Standard Package	500
Win Source Part Number	1327486-DR1050-681-R
Ultra Librarian 3D Model	Ultra Librarian DR1050-681-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division 1327486-DR1050-681-R is a drum core, wirewound inductor designed for use in various electronic applications.

Core Type: Drum Core, Wirewound
Shielded: Yes
Size: 0.413" L x 0.406" W (10.50mm x 10.30mm)
Inductance: 680 µH
Maximum DC Resistance (DCR): 1.369Ohm
Tolerance: ±30%
Current Rating: 560 mA
Operating Temperature Range: -40°C to 125°C
Mounting: Surface Mountable
Case/Package: Nonstandard
ROHS3 Compliant: Yes
ECCN Compliant: EAR99
