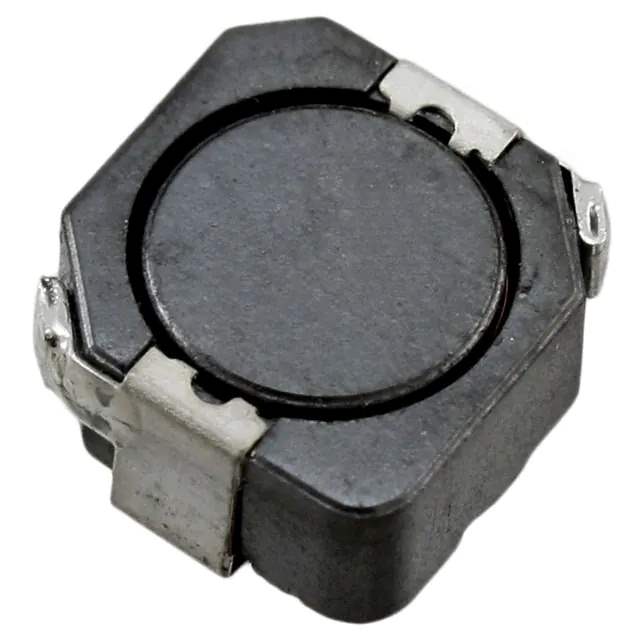

Same model may have multiple batches, images only for reference.

DR1050-821-R

Name: DR1050-821-R
Brand: Eaton Bussmann
SKU: 585816
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	DR1050-821-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 820UH 540MA 1.481 OHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Eaton Bussmann
Series	DR1050
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	820 µH
Tolerance	±30%
Current Rating (Amps)	540 mA
Current - Saturation (Isat)	500mA
Shielding	Shielded
DC Resistance (DCR)	1.481Ohm Max
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.413" L x 0.406" W (10.50mm x 10.30mm)
Height - Seated (Max)	0.197" (5.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	585816-DR1050-821-R
Ultra Librarian 3D Model	Ultra Librarian DR1050-821-R CAD Model

Alternative Products

Description

The 585816-DR1050-821-R is a fixed inductor from the DR1050 series of inductors, coils, and chokes.

Package: Tape & reel packaged
Core: Shielded drum core
Size/Dimension: 0.413" L x 0.406" W (10.50mm x 10.30mm)
Inductance: 820 µH
Height (Seated): 0.197" (5.00mm)
DC Resistance (DCR): 1.481 Ohm max
Current Rating: 540 mA
Mounting Type: Surface mount
Package/Case: Nonstandard
Operating Temperature: -40°C to 125°C
Manufacturer: Eaton Bussmann
Compliance: ECCN EAR99
MSL Level: 1 (Unlimited)
HTSUS Code: 8504.50.4000
