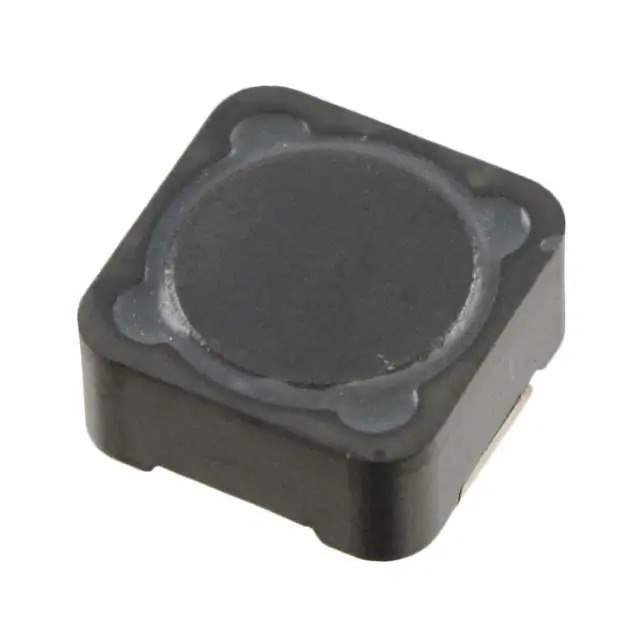

Same model may have multiple batches, images only for reference.

DR125-R47-R

Name: DR125-R47-R
Brand: Eaton Bussmann
SKU: 585829
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DR125-R47-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 470NH 17.6A 1.8MOHM SM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Eaton Bussmann
Series	DR
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	470 nH
Tolerance	±20%
Current Rating (Amps)	17.6 A
Current - Saturation (Isat)	33A
Shielding	Shielded
DC Resistance (DCR)	1.8mOhm
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.236" (6.00mm)
Standard Package	600 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	585829-DR125-R47-R
Ultra Librarian 3D Model	Ultra Librarian DR125-R47-R CAD Model

Alternative Products

Description

The DR125-R47-R is a fixed inductor designed for use in various electronic applications.

Core Type: Drum core
Construction: Wirewound
Shielding: Shielded
Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Inductance: 470nH
Height: 0.236" (6.00mm)
Mounting Type: Surface mountable
Package: Tape & reel
Manufacturer: Eaton Bussmann
Series: DR
Temperature Range: -40°C to 125°C
Current: 17.6A
