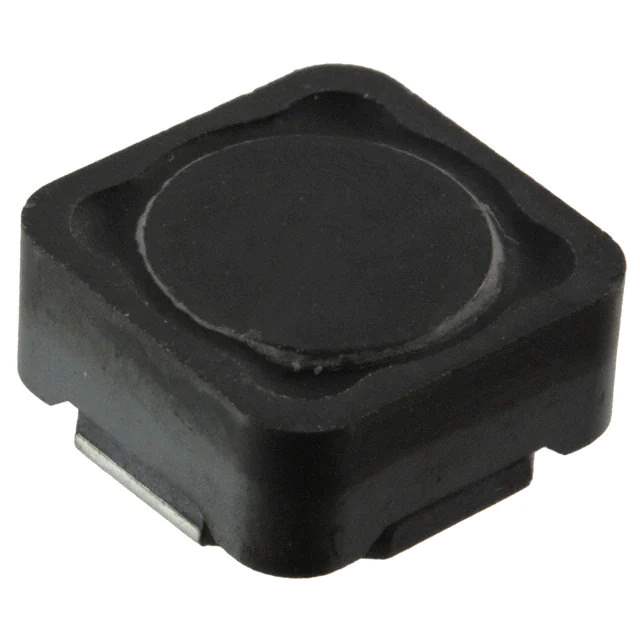

Same model may have multiple batches, images only for reference.

DRA125-4R7-R

Name: DRA125-4R7-R
Brand: Eaton Bussmann
SKU: 845480
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	DRA125-4R7-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 7.67A 9.2MOHM SM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Eaton Bussmann
Series	DRA
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	7.67 A
Current - Saturation (Isat)	9.76A
Shielding	Shielded
DC Resistance (DCR)	9.2mOhm
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 165°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.492" L x 0.492" W (12.50mm x 12.50mm)
Height - Seated (Max)	0.236" (6.00mm)
Standard Package	600 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	845480-DRA125-4R7-R
Ultra Librarian 3D Model	Ultra Librarian DRA125-4R7-R CAD Model

Alternative Products

Description

The 845480-DRA125-4R7-R is a fixed inductor from Eaton Bussmann's DRA series.

Type: Wirewound
Packaging: Tape & Reel (TR)
Size / Dimension: 0.492" L x 0.492" W (12.50mm x 12.50mm)
Inductance: 4.7 µH
Shielding: Shielded
Height - Seated (Max): 0.236" (6.00mm)
Standard Package: 600 pcs
Tolerance: ±20%
Rating: AEC-Q200
DC Resistance (DCR): 9.2mOhm
Mounting Type: Surface Mount
Temperature Range: -40°C ~ 165°C
MSL: 1 (Unlimited)
Current Rating: 7.67 A
Inductance Frequency - Test: 100 kHz
HTSUS: 8504.50.4000
Series: DRA
Manufacturer: Eaton Bussmann
