DRQ125-2R2-R

Part No DRQ125-2R2-R
Manufacturer Eaton Bussmann
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 2.208UH SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Number of Coils 2
Test Inductance - Connected In Series 8.832μH
Inductance - Connected In Parallel 2.208μH
Tolerance ±20%
Current Rating - Parallel 10.9A
Current Rating - Series 5.46A
Current Saturation - Parallel 15A
Current Saturation - Series 7.5A
DC Resistance (DCR) - Parallel 4.5 mOhm
DC Resistance (DCR) - Series 18.2 mOhm
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)

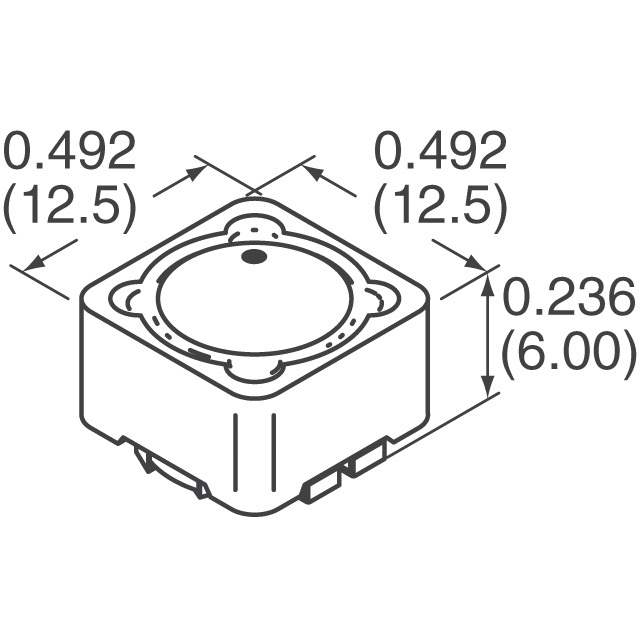

Height 0.236" (6.00mm)
Win Source Part Number 124925-DRQ125-2R2-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DRQ125-2R2-R CAD Model

Description

DRQ125-2R2-R

The DRQ125-2R2-R is a high-quality inductor designed for power-saving and performance enhancement in modern electronics. Offering a robust and reliable solution, this component is perfect for applications where precision and efficiency are paramount.

  • Features and Benefits:
    • High inductance stability under varying conditions.
    • Excellent current handling capabilities.
    • Low resistance for enhanced efficiency.
  • Applications:
    • Switch-mode power supplies
    • Power line management
    • Renewable energy systems
    • Automotive electronics

    With its remarkable efficiency and performance, the DRQ125-2R2-R meets the stringent demands of advanced electronic designs, ensuring long-term functionality and dependability.
