Same model may have multiple batches, images only for reference.

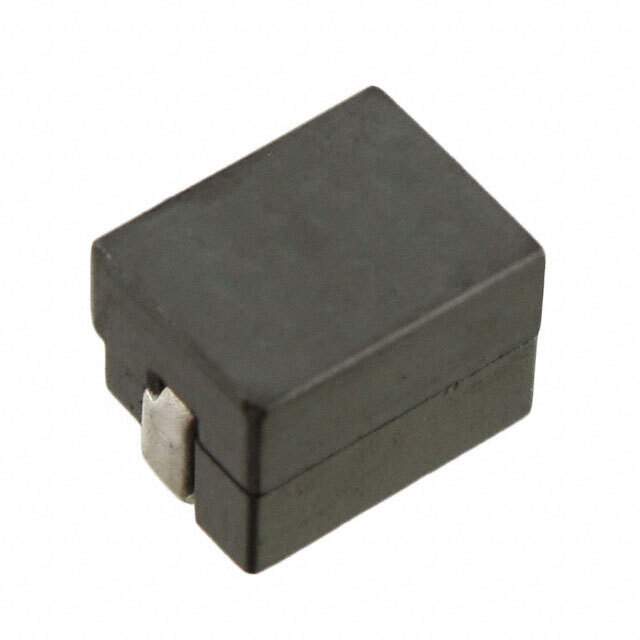

FP1007R2-R12-R Real Image
Same model may have multiple batches, images only for reference.

FP1007R2-R12-R

Part No FP1007R2-R12-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 120NH 51A 0.48MOHM SMD / 120 nH Unshielded Drum Core, Wirewound Inductor 51 A 0.48mOhm Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series FLAT-PAC, FP1007
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 120 nH
Tolerance ±10%
Current Rating (Amps) 51 A
Current - Saturation (Isat) 81A
Shielding Unshielded
DC Resistance (DCR) 0.48mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.402" L x 0.307" W (10.20mm x 7.80mm)
Height - Seated (Max) 0.256" (6.50mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1631-6,513-1631-1,513-1631-2,FP1007R2R12R
Standard Package 750
Win Source Part Number 983437-FP1007R2-R12-R
Ultra Librarian 3D Model Ultra Librarian FP1007R2-R12-R CAD Model

Description

The 983437-FP1007R2-R12-R is an inductor, coil, choke electronic component that belongs to the fixed inductors category.

  • Series: FLAT-PAC, FP1007
  • Type: drum core, wirewound
  • Packaging: tape and reel
  • Shielding: unshielded
  • Inductance: 120 nH
  • Height (Seated): 0.256 inches
  • Standard Package: 750
  • Mounting Type: SMD (SMT)
  • Tolerance: ±10%
  • Core Material: ferrite
  • DC Resistance: 0.48mOhm
  • Current Rating: 51 A
  • Temperature Range: -40°C to 125°C
  • Manufacturer: Eaton - Electronics Division
