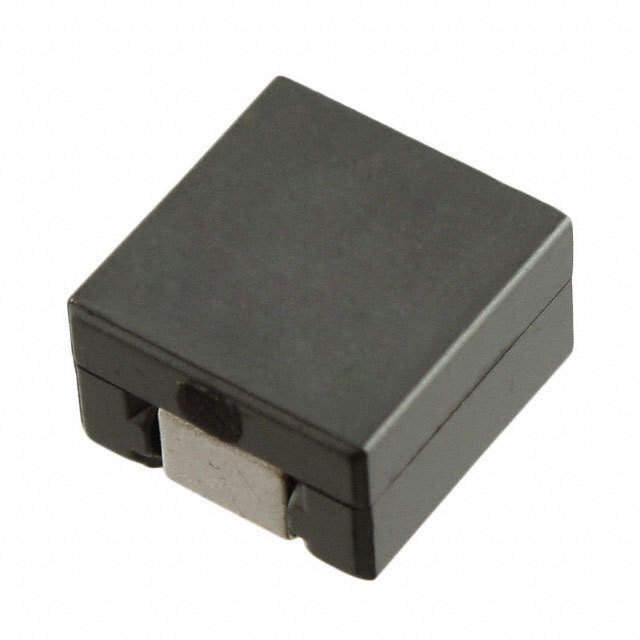

Same model may have multiple batches, images only for reference.

FP1308-R32-R

Name: FP1308-R32-R
Brand: Eaton Bussmann
SKU: 774697
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	FP1308-R32-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 320NH 68A 0.24 MOHM / Inductor Power Wirewound 0.32uH 10% 100KHz Ferrite 68A 0.00024Ohm DCR 5050 T/R
Datasheet	FP1308-R32-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton
Series	FLAT-PAC, FP1308
Packaging	Reel package
Type	Wirewound
Material - Core	Ferrite
Inductance	320nH
Tolerance	±10%
Current Rating	68A
Current - Saturation	45A
Shielding	Unshielded
DC Resistance (DCR)	0.24 mOhm Max
Operating Temperature Range	-40°C ~ 125°C
Test Frequency	100kHz
Mounting	SMD
Package	Nonstandard
Dimension	0.539" L x 0.510" W (13.70mm x 12.95mm)
Height - Seated (Maximum)	0.315" (8.00mm)
Win Source Part Number	774697-FP1308-R32-R
Popularity	Medium
Supply and Demand Status	Limited
Family Name	FP1308
Introduction Date	October 05, 2006
ECCN	EAR99
Country of Origin	China, Philippines
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian FP1308-R32-R CAD Model

Alternative Products

Description

The Eaton FLAT-PAC, FP1308 series inductor is a wirewound type.

Current Rating: 68A
Inductance: 320nH
Tolerance: ±10%
Operating Temperature Range: -40°C to 125°C
Packaging: Nonstandard
Mounting: SMD
Material: Ferrite
Shielding: Unshielded
Height: 0.315" (8.00mm)
