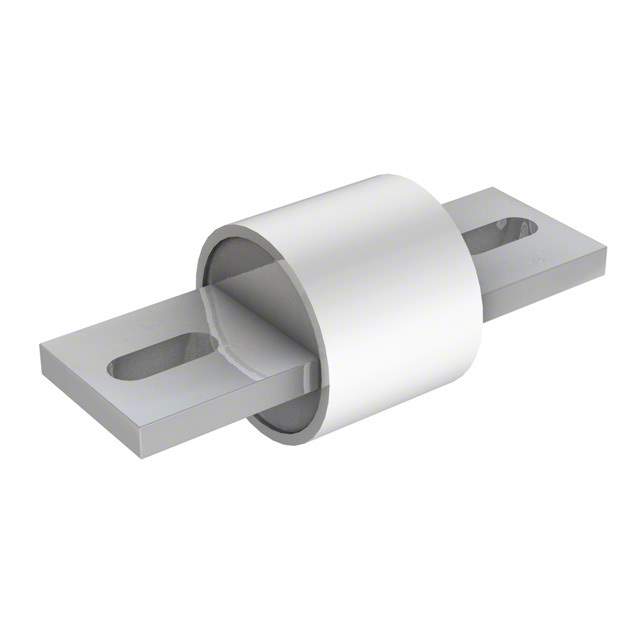

FWH-800A Real Image
Same model may have multiple batches, images only for reference.

FWH-800A

Part No FWH-800A
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CARTRIDGE 800A 500VAC/VDC  /  800A 500 V AC 500 V DC Fuse Cartridge Bolt Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Electrical, Specialty Fuses
Mfr Eaton - Bussmann Electrical Division
Series FWH
Package Bulk
Mounting Type Bolt Mount
Fuse Type Cartridge
Current Rating (Amps) 800A
Voltage Rating - AC 500 V
Voltage Rating - DC 500 V
Applications Electrical, Industrial
Approval Agency CE, CSA, UR
Breaking Capacity @ Rated Voltage 200kA AC, 50kA DC
Package / Case Cylindrical, Blade Terminal (Bolt)
Dimension 2.500" Dia x 6.340" L (63.50mm x 161.04mm)
Melting I2t 76200
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Other Names 283-4318,FWH-800A-ND,FWH-800Aa
Standard Package 1
Win Source Part Number 1061603-FWH-800A
Ultra Librarian 3D Model Ultra Librarian FWH-800A CAD Model

Description

The FWH-800A is an electrical, specialty fuse from Eaton.

  • Current Rating: 800A
  • Voltage Rating: 500V AC and DC
  • Breaking Capacity: 200kA AC and 50kA DC @ rated voltage
  • Package: Cylindrical, blade terminal (bolt)
  • Mounting: Bolt mount
  • Applications: Electrical and industrial applications
  • Series: FWH
  • Standard Package: One piece
  • Packaging: Available in bulk packaging.
