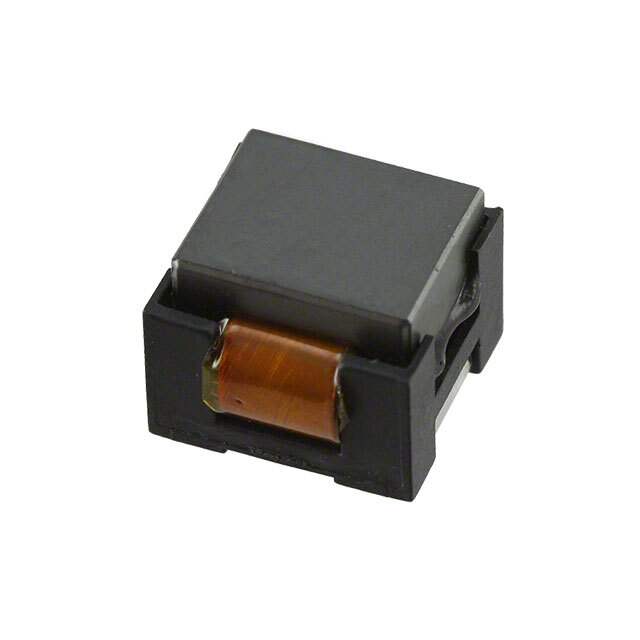

Same model may have multiple batches, images only for reference.

HC1-2R3-R

Name: HC1-2R3-R
Brand: Eaton Bussmann
SKU: 141384
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HC1-2R3-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 2.3UH 22.3A 2 MOHM SMD
Datasheet	HC1-2R3-R Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton Bussmann
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	2.3μH
Tolerance	±15%
Current Rating	22.3A
Current - Saturation	16.7A
DC Resistance (DCR)	2 mOhm Max
Temperature Range - Operating	-40°C to 125°C
Frequency - Test	300kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.394" (10.00mm)
Win Source Part Number	040431-HC1-2R3-R
Popularity	Medium
Supply and Demand Status	Limited
Ultra Librarian 3D Model	Ultra Librarian HC1-2R3-R CAD Model

Alternative Products

Description

The Eaton Bussmann wirewound inductor is a high-quality inductor.

Current Rating: 22.3A
Inductance: 2.3μH
DC Resistance (DCR): 2 mOhm Max
Tolerance: ±15%
Height: 0.394" (10.00mm)
Mounting: SMD (SMT)
Current Saturation: 16.7A
Frequency Test: 300kHz
Material: Ferrite
Application: Inductors, coils, and chokes
