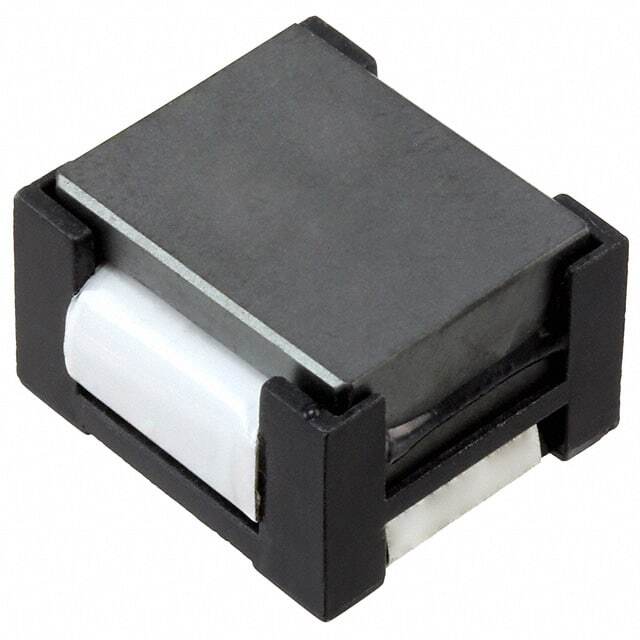

Same model may have multiple batches, images only for reference.

HC2-4R7-R

Name: HC2-4R7-R
Brand: Eaton Bussmann
SKU: 873234
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	HC2-4R7-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 4.7UH 17A 4.6 MOHM SMD / 4.7 μH Unshielded Wirewound Inductor 17 A 4.6mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Eaton Bussmann
Series	HC2
Package	Bulk
Product Status	Obsolete
Type	Wirewound
Inductance	4.7 µH
Tolerance	±20%
Current Rating (Amps)	17 A
Current - Saturation (Isat)	21.25A
Shielding	Unshielded
DC Resistance (DCR)	4.6mOhm Max
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	300 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.756" L x 0.748" W (19.20mm x 19.00mm)
Height - Seated (Max)	0.500" (12.70mm)
Standard Package	45 pcs
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	873234-HC2-4R7-R
Ultra Librarian 3D Model	Ultra Librarian HC2-4R7-R CAD Model

Alternative Products

Description

The 873234-HC2-4R7-R is a wirewound inductor from the HC2 series by Eaton Bussmann.

Type: Fixed Inductor
Size: 0.756" L x 0.748" W (19.20mm x 19.00mm)
Shielding: Unshielded
Inductance: 4.7 µH
Seated Height: 0.500" (12.70mm) Max
DCR: 4.6mOhm Max
Operating Temperature: -40°C to 85°C
Current: 17A
Mounting Type: Surface Mount
Package: Bulk
Package/Case: Nonstandard
Product Status: Obsolete
