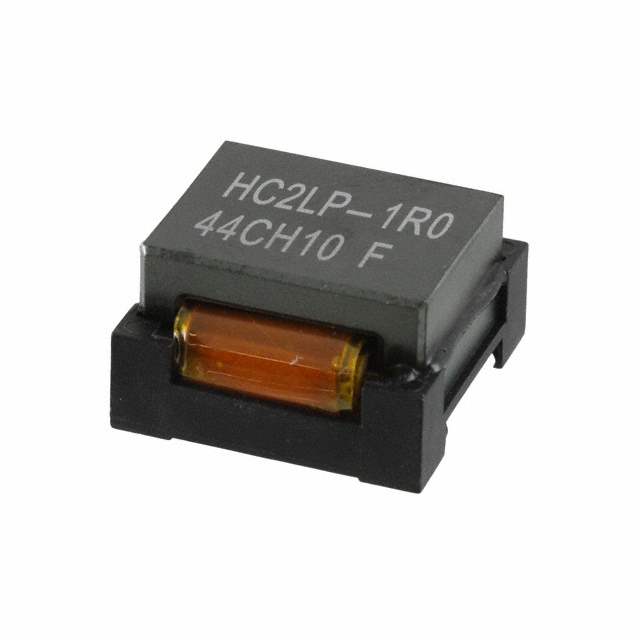

Same model may have multiple batches, images only for reference.

HC2LP-1R0-R

Name: HC2LP-1R0-R
Brand: Eaton Bussmann
SKU: 141423
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HC2LP-1R0-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	Inductor Power Wirewound 1.15uH/1uH 20% 300KHz Ferrite 33A 0.0013Ohm DCR T/R / FIXED IND 1UH 33A 1.3 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Eaton Bussmann
Packaging	Reel - TR
Status	Active
Type	Wirewound
Material - Core	Ferrite
Inductance	1μH
Tolerance	±20%
Current Rating	33A
Current - Saturation	42.5A
DC Resistance (DCR)	1.3 mOhm Max
Temperature Range - Operating	-40°C to 85°C
Frequency - Test	300kHz
Mounting	SMD (SMT)
Height - Seated (Max)	0.440" (11.18mm)
Win Source Part Number	001500-HC2LP-1R0-R
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Family Name	HC2LP
Introduction Date	April 07, 2006
ECCN	EAR99
Country of Origin	Philippines
Halogen Free	Compliant
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian HC2LP-1R0-R CAD Model

Alternative Products

Description

The Eaton Bussmann 001500-HC2LP-1R0-R is a wirewound surface mount inductor designed for use in electronic circuits. It has a current rating of 33A and an inductance of 1μH. The height when seated is 0.440 inches, and it is mounted using SMD (SMT) technology. The tolerance of this product is ±20%, and the material core is ferrite. The current saturation is 42.5A, and the DC resistance (DCR) is 1.3 mOhm Max. This product is suitable for use in inductor, coil, and choke applications.
