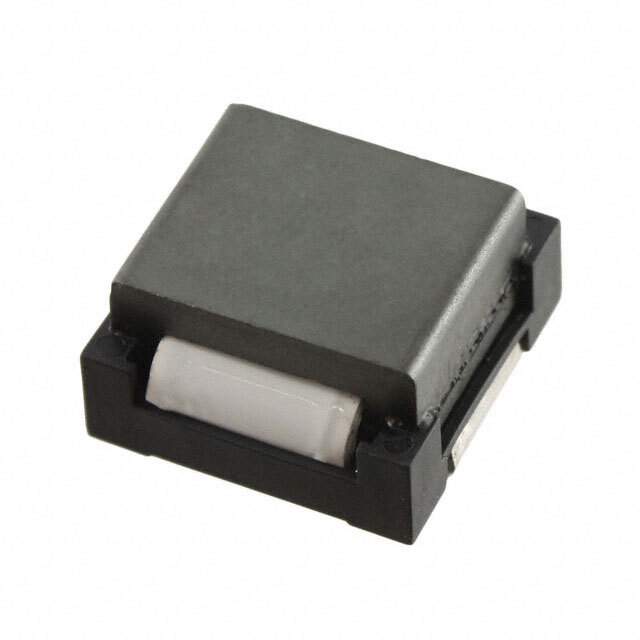

Same model may have multiple batches, images only for reference.

HC2LP-R47-R

Name: HC2LP-R47-R
Brand: Eaton Bussmann
SKU: 1197684
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	HC2LP-R47-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 470NH 52.9A 0.6MOHM SM / 470 nH Unshielded Drum Core, Wirewound Inductor 52.9 A 0.6mOhm Max Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	HC2LP
Package	Tape & Reel
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	470 nH
Tolerance	±20%
Current Rating (Amps)	52.9 A
Current - Saturation (Isat)	63.75A
Shielding	Unshielded
DC Resistance (DCR)	0.6mOhm Max
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	300 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.756" L x 0.756" W (19.20mm x 19.20mm)
Height - Seated (Max)	0.440" (11.18mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	HC2LP-R47,513-1751-2,513-1751-1,HC2LP-R47-ND,HC2LP-R47-R-ND,HC2LPR47R,513-1751-6
Standard Package	130
Win Source Part Number	1197684-HC2LP-R47-R
Ultra Librarian 3D Model	Ultra Librarian HC2LP-R47-R CAD Model

Alternative Products

Description

The Eaton - Electronics Division HC2LP-R47-R is a drum core wirewound inductor with an inductance of 470nH and a current rating of 52.9A.

Inductance: 470nH
Current Rating: 52.9A
Tolerance: ±20%
DC Resistance: 0.6mOhm Max
Mounting: SMD (SMT)
Height: 0.440" (11.18mm)
Saturation Current: 63.75A
Inductance Frequency Test: 300kHz
Temperature Range: -40°C to 85°C
Applications: Inductors, Coils, Chokes
