Same model may have multiple batches, images only for reference.

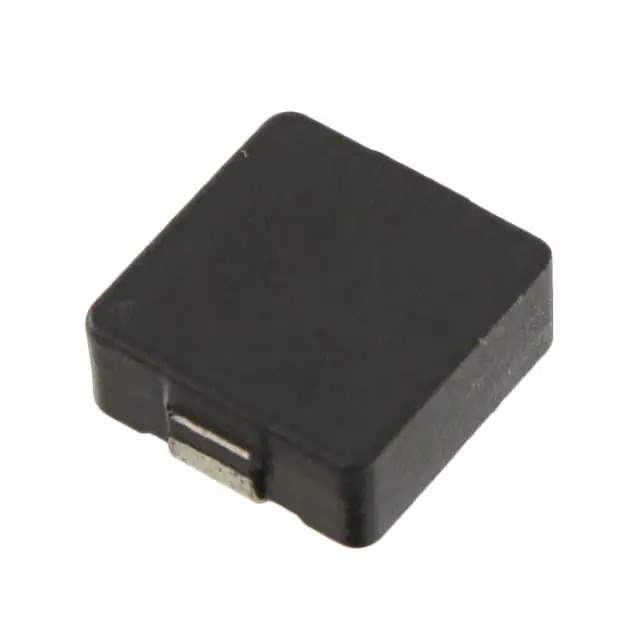

HCM1305-220-R Real Image
Same model may have multiple batches, images only for reference.

HCM1305-220-R

Part No HCM1305-220-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 22UH 6.2A 51.8MOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton Bussmann
Series HCM1305
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 22 µH
Tolerance ±20%
Current Rating (Amps) 6.2 A
Current - Saturation (Isat) 10A
Shielding Shielded
DC Resistance (DCR) 51.8mOhm Max
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.524" L x 0.480" W (13.30mm x 12.20mm)
Height - Seated (Max) 0.197" (5.00mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 873286-HCM1305-220-R
Ultra Librarian 3D Model Ultra Librarian HCM1305-220-R CAD Model

Description

The 873286-HCM1305-220-R is a fixed inductor manufactured by Eaton Bussmann.

  • Series: HCM1305
  • Construction: Drum core, wirewound
  • Package: Tape & reel
  • Shielding: Shielded
  • Size/Dimension: 0.524" L x 0.480" W (13.30mm x 12.20mm)
  • Inductance: 22 μH
  • Tolerance: ±20%
  • Maximum Seated Height: 0.197" (5.00mm)
  • Standard Package: 400 pieces
  • DC Resistance (DCR): 51.8mOhm max
  • Operating Temperature: -55°C to 125°C
  • MSL Level: 1 (Unlimited)
  • Current Rating: 6.2A
  • Inductance Frequency Test: 100 kHz
  • HTSUS Code: 8504.50.8000
