Same model may have multiple batches, images only for reference.

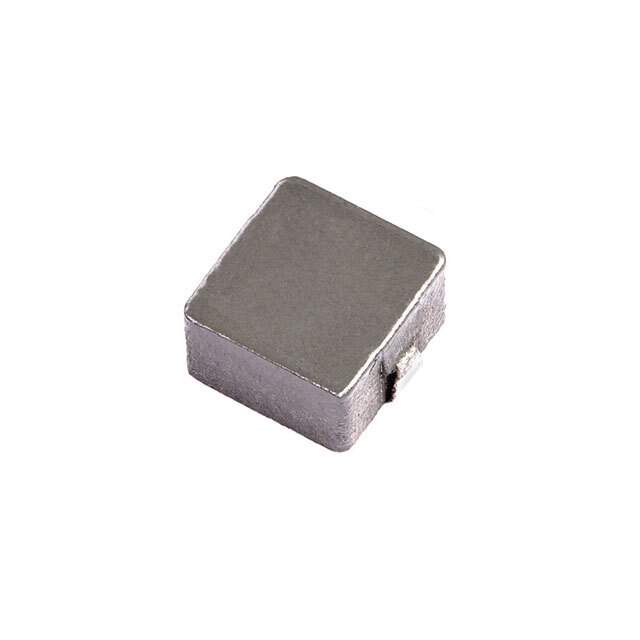

HCMA0503-3R3-R Real Image
Same model may have multiple batches, images only for reference.

HCMA0503-3R3-R

Part No HCMA0503-3R3-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 3.3UH 5.5A 40.4MOHM SM / 3.3 µH Shielded Drum Core, Wirewound Inductor 5.5 A 40.4mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series HCMA0503
Package Tape & Reel
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 3.3 µH
Tolerance ±20%
Current Rating (Amps) 5.5 A
Current - Saturation (Isat) 6A
Shielding Shielded
DC Resistance (DCR) 40.4mOhm Max
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.203" L x 0.201" W (5.15mm x 5.10mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Other Names 283-4524-1,283-4524-2,283-4524-6
Standard Package 2,000
Win Source Part Number 1061908-HCMA0503-3R3-R
Ultra Librarian 3D Model Ultra Librarian HCMA0503-3R3-R CAD Model

Description

The Eaton - Electronics Division HCMA0503-3R3-R is a fixed inductor that belongs to the inductors, coils, chokes category.

  • Series: HCMA0503 series
  • Core Type: drum core, wirewound type
  • Shielding: shielded package
  • Inductance: 3.3 µH
  • Maximum DC Resistance: 40.4mOhm
  • Current Rating: 5.5A
  • Suitability: suitable for use in various electronic circuits that require a reliable and high-performance fixed inductor
  • Temperature Range: -55°C to 125°C
  • Benefit: cost-effective solution for your inductor needs
