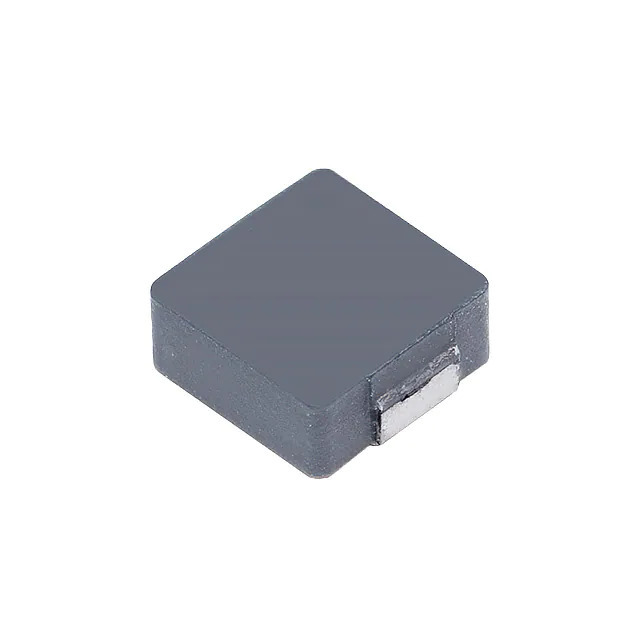

HCMA0703-2R2-R Eaton Bussmann
Same model may have multiple batches, images only for reference.

HCMA0703-2R2-R

Part No HCMA0703-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 8A 20 MOHM SMD / 2.2 µH Shielded Drum Core, Wirewound Inductor 8 A 20mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Eaton - Electronics Division
Series HCMA0703
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Iron Powder
Inductance 2.2 µH
Tolerance ±20%
Current Rating (Amps) 8 A
Current - Saturation (Isat) 14A
Shielding Shielded
DC Resistance (DCR) 20mOhm Max
Q @ Freq -
Frequency - Self Resonant -
Ratings AEC-Q200
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package -
Size / Dimension 0.280" L x 0.268" W (7.10mm x 6.80mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 1354139-HCMA0703-2R2-R
Ultra Librarian 3D Model Ultra Librarian HCMA0703-2R2-R CAD Model

Description

The HCMA0703-2R2-R is a drum core, wirewound inductor from Eaton - Electronics Division.

  • Inductance: 2.2 µH
  • Tolerance: ±20%
  • Current Rating: 8 A
  • Shielding: Shielded
  • DC Resistance (DCR): 20mOhm Max
  • Operating Temperature: -55°C ~ 125°C
  • Size / Dimension: 0.280" L x 0.268" W (7.10mm x 6.80mm)
  • Height - Seated (Max): 0.130" (3.30mm)
  • Package / Case: Nonstandard SMD
  • AEC-Q200: Yes
  • Mounting Type: Surface Mount
  • Material - Core: Drum Core
  • Type: Wirewound
  • Mfr: Eaton - Electronics Division
  • Packaging: Tape & Reel (TR)
  • Status: Active
