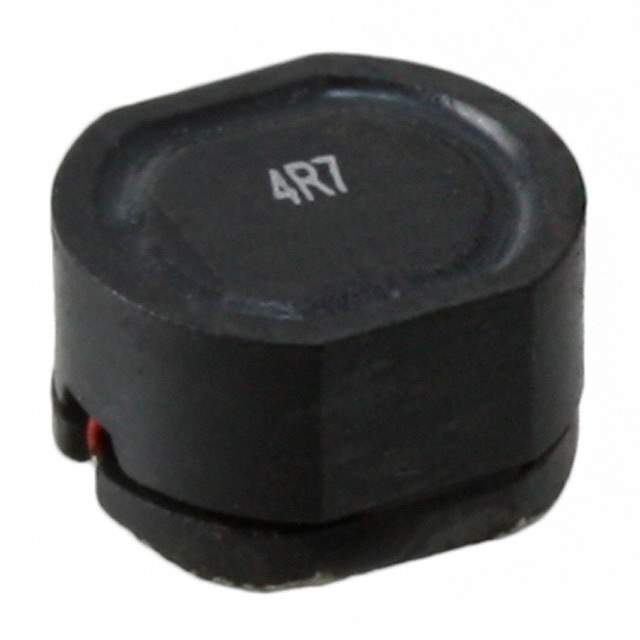

Same model may have multiple batches, images only for reference.

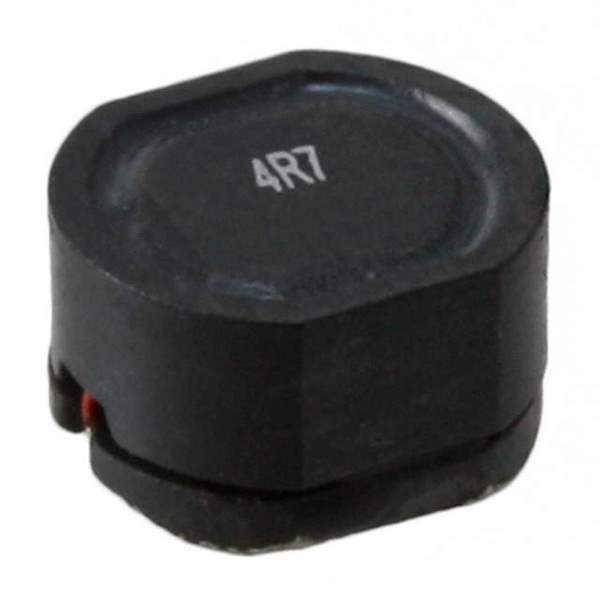

LDS0705-4R7M-R Real Image
Same model may have multiple batches, images only for reference.

LDS0705-4R7M-R

Part No LDS0705-4R7M-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 4.7UH 3.32A 21 MOHM
Datasheet
LDS0705-4R7M-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 4.7μH
Tolerance ±20%
Current Rating 3.32A
Current - Saturation 3.53A
DC Resistance (DCR) 21 mOhm
Temperature Range - Operating -40°C to 125°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.197" (5.00mm)
Win Source Part Number 100056-LDS0705-4R7M-R
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian LDS0705-4R7M-R CAD Model

Description

The Eaton Bussmann 100056-LDS0705-4R7M-R wirewound inductor is a high-quality component designed to provide superior performance in a wide range of electronic applications.

  • Current Rating: 3.32A
  • Inductance: 4.7μH, this inductor is ideal for use in a variety of circuits.
  • Material: made from ferrite material
  • DC Resistance (DCR): 21 mOhm.
  • Temperature Range: -40°C to 125°C
  • Mounting: SMD (SMT) technology.
  • Packaging: available in reel packaging
  • Tolerance: ±20%.
  • The Eaton Bussmann 100056-LDS0705-4R7M-R wirewound inductor: a reliable and efficient component that is suitable for a range of applications.
