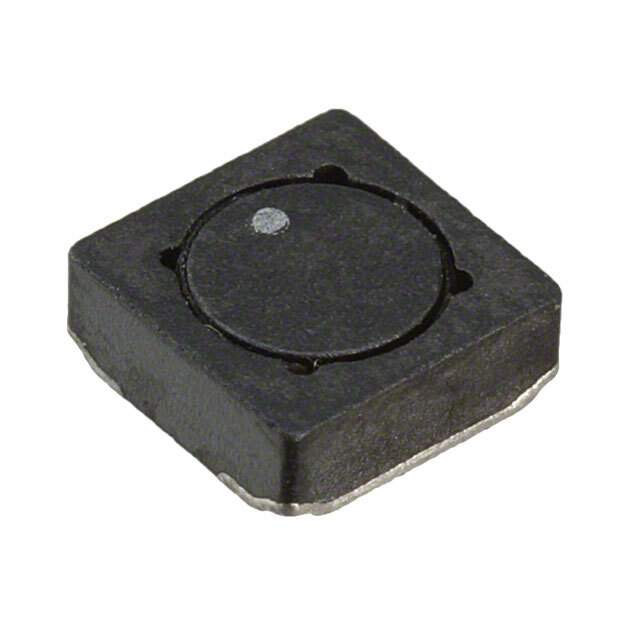

Same model may have multiple batches, images only for reference.

SD20-681-R

Name: SD20-681-R
Brand: Eaton Bussmann
SKU: 999781
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SD20-681-R
Manufacturer	Eaton Bussmann
Catalog	Fixed Inductors
Description	FIXED IND 680UH 216MA 5.56OHM SM / 680 µH Shielded Drum Core, Wirewound Inductor 216 mA 5.56Ohm Nonstandard
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Mfr	Eaton - Electronics Division
Series	SD
Package	Tape & Reel (TR)
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	680 µH
Tolerance	±20%
Current Rating (Amps)	216 mA
Current - Saturation (Isat)	107mA
Shielding	Shielded
DC Resistance (DCR)	5.56Ohm
Temperature Range - Operating	-40°C ~ 85°C
Inductance Frequency - Test	100 kHz
Mounting	SMD (SMT)
Package / Case	Nonstandard
Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.079" (2.00mm)
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8504.50.4000
Other Names	SD20-681,SD20-681-ND
Standard Package	2,900
Win Source Part Number	999781-SD20-681-R
Ultra Librarian 3D Model	Ultra Librarian SD20-681-R CAD Model

Alternative Products

Description

The Eaton SD20-681-R fixed inductor is a high-quality inductor that is designed for use in a wide range of electronic applications.

Inductance: 680 μH
Height: 0.079" (2.00mm)
Material: Ferrite
Tolerance: ±20%
DC Resistance: 5.56Ohm
Mounting: SMD (SMT)
Packaging: Tape & Reel (TR)
Operating Temperature: -40°C to 85°C
Dimension: 0.205" L x 0.205" W (5.20mm x 5.20mm)
ECCN: EAR99
HTSUS: 8504.50.4000
Current Rating: 216 mA
Inductance Frequency Test: 100 kHz
