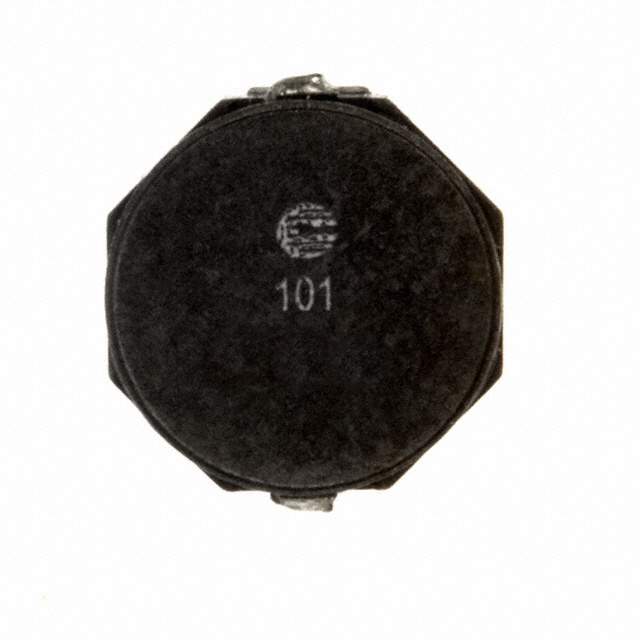

Same model may have multiple batches, images only for reference.

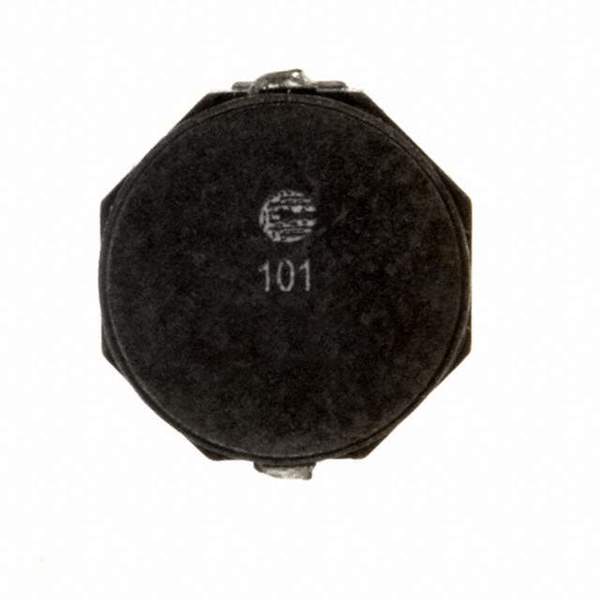

SD8350-101-R Real Image
Same model may have multiple batches, images only for reference.

SD8350-101-R

Part No SD8350-101-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 100UH 800MA 360MOHM SM  /  100 µH Shielded Drum Core, Wirewound Inductor 800 mA 360mOhm Max Nonstandard
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Mfr Eaton - Electronics Division
Series SD8350
Package Tape & Reel (TR)
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±30%
Current Rating (Amps) 800 mA
Current - Saturation (Isat) 1.3A
Shielding Shielded
DC Resistance (DCR) 360mOhm Max
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting SMD (SMT)
Package / Case Nonstandard
Dimension 0.374" L x 0.327" W (9.50mm x 8.30mm)
Height - Seated (Max) 0.118" (3.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.50.4000
Other Names 513-1507-1,513-1507-2,513-1507-6,SD8350101R
Standard Package 750
Win Source Part Number 1171328-SD8350-101-R
Ultra Librarian 3D Model Ultra Librarian SD8350-101-R CAD Model

Description

The SD8350-101-R is a drum core, wirewound fixed inductor from Eaton - Electronics Division.

  • Inductance: 100 µH
  • Tolerance: ±30%
  • Height: 0.118" (3.00mm)
  • DC Resistance (DCR): 360mOhm Max
  • Current Rating: 800 mA
  • Operating Temperature Range: -40°C ~ 125°C
  • Type: Shielded
  • Package: tape and reel
  • Dimension: 0.374" L x 0.327" W (9.50mm x 8.30mm)
