Same model may have multiple batches, images only for reference.

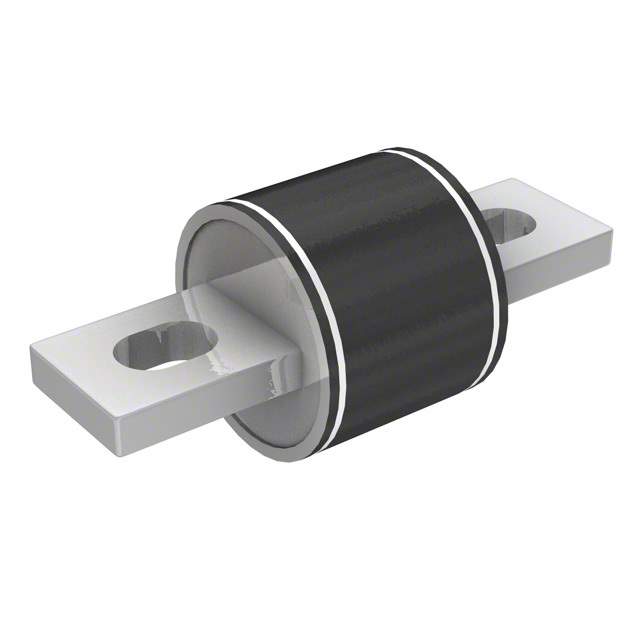

TPL-CZH Real Image
Same model may have multiple batches, images only for reference.

TPL-CZH

Part No TPL-CZH
Manufacturer Eaton Bussmann
Catalog Electrical, Specialty Fuses
Description FUSE CRTRDGE 800A 170VDC CYLINDR
Datasheet
TPL-CZH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton Bussmann
Packaging Bulk
Status Active
Fuse Type Cartridge
Current Rating 800A
Voltage Rating - DC 170V
Applications Telecom
Approvals CE, UR
Breaking Capacity @ Rated Voltage 100kA
Mounting Bolt Mount
Dimension 1.500" Dia x 1.252" L (38.10mm x 31.80mm)
Win Source Part Number 048096-TPL-CZH
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian TPL-CZH CAD Model

Description

The Eaton Bussmann 048096-TPL-CZH is a cartridge-type fuse designed for circuit protection in telecom applications.

  • GPTDescription: It has a current rating of 800A and a voltage rating of 170V DC, with a breaking capacity of 100kA @ rated voltage.
  • GPTDescription: The fuse has CE and UR approvals and is mountable with bolt mount.
  • GPTDescription: It has a dimension of 1.500" Dia x 1.252" L (38.10mm x 31.80mm) and is available in bulk packaging.
  • GPTDescription: The nominal melting - I2t is not specified.
  • GPTDescription: Its popularity is medium, and the supply and demand status is limited.
