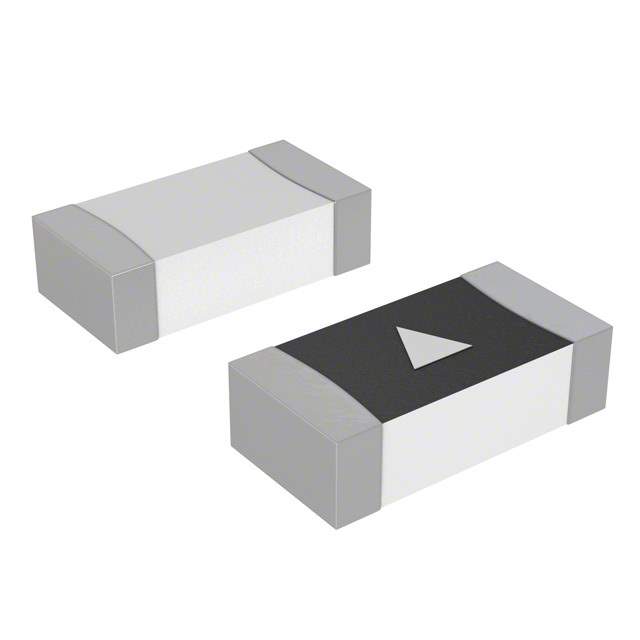

TR/3216LV500-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216LV500-R

Part No TR/3216LV500-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MNT 500MA 125VAC/VDC
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Features 500 mA 125 V AC 125 V DC Fuse Board Mount (Cartridge Style Excluded) Surface Mount 1206 (3216 Metric)
Manufacturer Eaton Bussmann
Series CHIP 3216LV
Package Reel - TR
Part Status Obsolete
Operating Temperature Range -65°C ~ 125°C
Mounting Surface Mount
Package 1206 (3216 Metric)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.10.0040
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 937522-TR/3216LV500-R
Ultra Librarian 3D Model Ultra Librarian TR/3216LV500-R CAD Model

Description

The Eaton Bussmann 937522-TR/3216LV500-R is a surface mount fuse that is part of the CHIP 3216LV series.

  • Series: CHIP 3216LV
  • Temperature Range: -65°C to 125°C
  • Rated Current: 500mA
  • Voltage: Up to 125V AC or 125V DC
  • Mounting: Surface Mountable
  • Package: 1206 (3216 Metric)
  • Status: Obsolete
  • Popularity: High
  • Application: Circuit Protection
