Same model may have multiple batches, images only for reference.

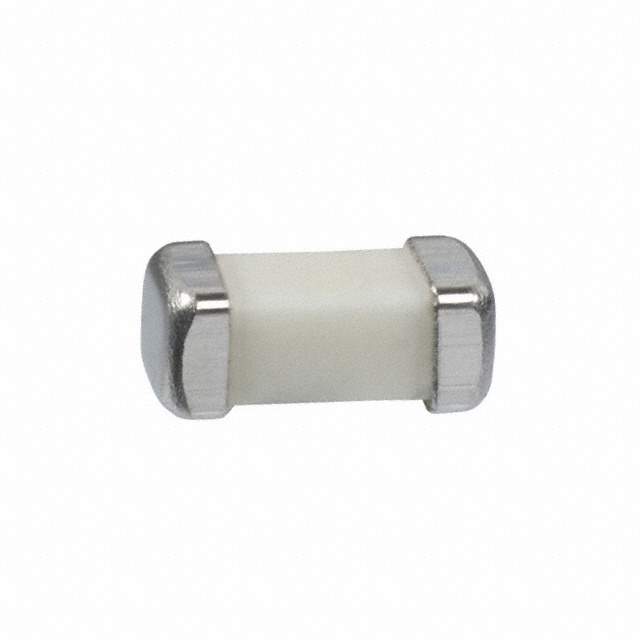

TR2/6125FA15A Real Image
Same model may have multiple batches, images only for reference.

TR2/6125FA15A

Part No TR2/6125FA15A
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE BOARD MOUNT 15A 86VDC 2SMD
Datasheet
TR2/6125FA15A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 15A
Voltage Rating - DC 86V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 10kA
Nominal Melting - I2t 124
Approvals CSA, UL
Nominal Cold Resistance 0.004 Ohm
Win Source Part Number 1113943-TR2/6125FA15A
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian TR2/6125FA15A CAD Model

Description

The Eaton 1113943-TR2/6125FA15A is a board mountable (cartridge style excluded) fuse designed for circuit protection applications.

  • Current Rating: 15A
  • Voltage Rating: 86V DC
  • Response Time: Fast
  • Breaking Capacity: 10kA
  • Approvals: CSA and UL
  • Mounting: SMD (SMT)
  • Nominal Cold Resistance: 0.004 Ohm
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Nominal Melting - I2t: 124
