Same model may have multiple batches, images only for reference.

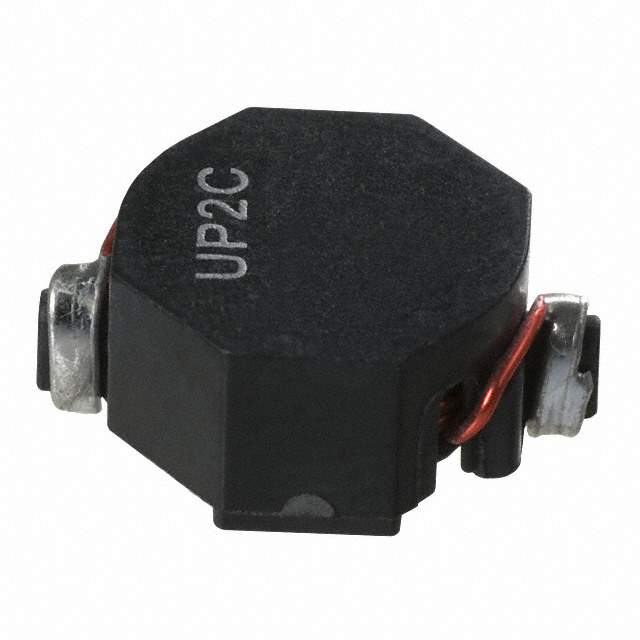

UP2C-100-R Real Image
Same model may have multiple batches, images only for reference.

UP2C-100-R

Part No UP2C-100-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 10UH 3.61A 28.3 MOHM
Datasheet
UP2C-100-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 10μH
Tolerance ±20%
Current Rating 3.61A
Current - Saturation 3.94A
DC Resistance (DCR) 28.3 mOhm
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.205" (5.20mm)
Win Source Part Number 119740-UP2C-100-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UP2C-100-R CAD Model

Description

The Eaton Bussmann UP2C-100-R is a wirewound inductor with a current rating of 3.61A and an inductance of 10μH.

  • Current Rating: 3.61A
  • Inductance: 10μH
  • Height: 0.205 inches
  • Mounting: SMD (SMT)
