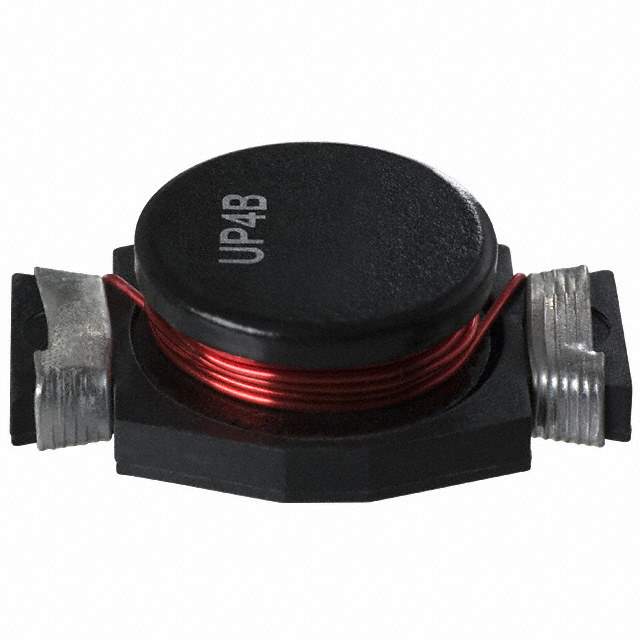

UP4B-2R2-R Real Image
Same model may have multiple batches, images only for reference.

UP4B-2R2-R

Part No UP4B-2R2-R
Manufacturer Eaton Bussmann
Catalog Fixed Inductors
Description FIXED IND 2.2UH 12A 4.8 MOHM SMD
Datasheet
UP4B-2R2-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton Bussmann
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 2.2μH
Tolerance ±20%
Current Rating 12A
Current - Saturation 23.7A
DC Resistance (DCR) 4.8 mOhm Max
Temperature Range - Operating -40°C to 85°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.310" (7.87mm)
Win Source Part Number 048558-UP4B-2R2-R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian UP4B-2R2-R CAD Model

Description

The Eaton Bussmann UP4B-2R2-R is a wirewound electronic component designed for use in inductors, coils, and chokes.

  • Manufacturer: Eaton Bussmann
  • Current Rating: 12A
  • Inductance: 2.2μH
  • Maximum Height Seated: 0.310" (7.87mm)
  • Mounting Type: SMD (SMT)
  • Tolerance: ±20%
  • Core Material: Ferrite
  • DC Resistance (DCR): 4.8 mOhm Max
  • Current Saturation: 23.7A
  • Status: Active
  • Temperature Range: -40°C to 85°C
  • Packaging: Reel - TR
