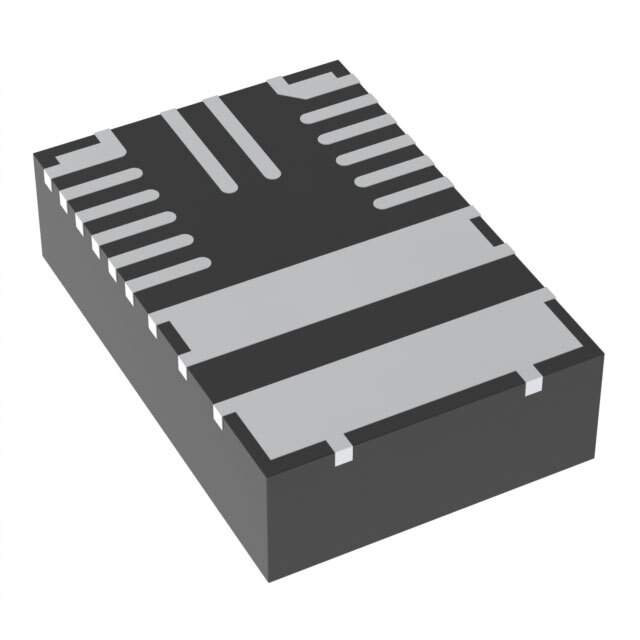

Same model may have multiple batches, images only for reference.

MPM3650GQW-P

Name: MPM3650GQW-P
Brand: Monolithic Power Systems Inc.
SKU: 987161
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MPM3650GQW-P
Manufacturer	Monolithic Power Systems Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	1.2MHZ, SYNCHRONOUS, 2.75V TO 17 / Non-Isolated PoL Module DC DC Converter 1 Output 0.6 ~ 12V 6A 2.75V - 17V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Monolithic Power Systems Inc.
Series	MPM
Package	Tape & Reel
Type	Non-Isolated PoL Module
Number of Outputs	1
Voltage - Input (Min)	2.75V
Voltage - Input (Max)	17V
Voltage - Output 1	0.6 ~ 12V
Current - Output (Max)	6A
Applications	ITE (Commercial)
Features	Adjustable Output, Remote On/Off
Temperature Range - Operating	-40°C ~ 125°C (With Derating)
Mounting	SMD (SMT)
Package / Case	24-PowerLFQFN Module
Dimension	0.24" L x 0.16" W x 0.06" H (6.0mm x 4.0mm x 1.7mm)
Supplier Device Package	24-QFN (4x6)
Control Features	Enable, Active High
Base Product Number	MPM3650
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1589-MPM3650GQW-PTR,1589-MPM3650GQW-PDKR,1589-MPM3650GQW-PCT
Standard Package	500
Win Source Part Number	987161-MPM3650GQW-P
Ultra Librarian 3D Model	Ultra Librarian MPM3650GQW-P CAD Model

Alternative Products

Description

The MPM3650GQW-P is a non-isolated PoL module from the MPM series by Monolithic Power Systems Inc.

Type: Power supply board mount DC-DC converter
Application: ITE (commercial)
Features: Adjustable output, remote on/off control
Maximum Current Output: 6A
Input Voltage Range: 2.75V to 17V
Output Voltage Range: 0.6V to 12V
Package/Case Size: 24-PowerLFQFN Module
Mounting: SMD (SMT)
Temperature Range: -40°C to 125°C (With Derating)
